SKF - Cylindrical Roller Bearing Brass Cage

170 x 360 x 120 (NJ 2334 ECML/C3)
Stock Code:
NJ2334ECML-C3_SKF
$7,116.95 incl GST

Stock Locations

  • Ballarat:
    Special Order
Make an Enquiry
Add to Favourites

Description

NJ 2334 ECML

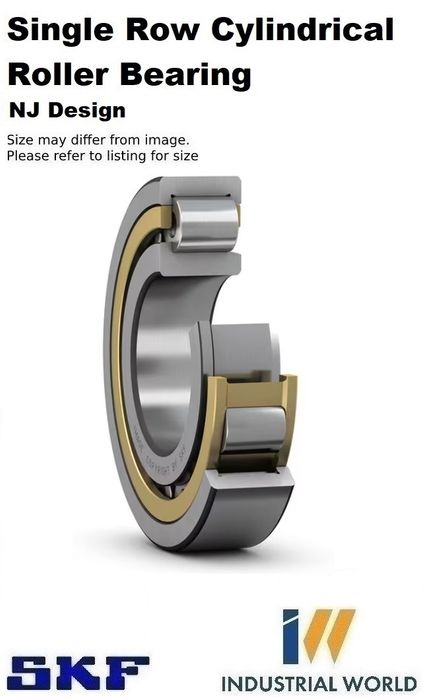

Single row cylindrical roller bearing, NJ design

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one on the inner ring, NJ design bearings can accommodate axial displacement in one direction. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

  • High radial load carrying capacity
  • Low friction
  • Long service life
  • Locate the shaft axially in one direction
  • Separable design

Dimensions

Bore diameter170 mm
Outside diameter360 mm
Width120 mm

Performance

Basic dynamic load rating1 450 kN
Basic static load rating2 040 kN
Reference speed1 700 r/min
Limiting speed3 400 r/min

Properties

Bearing partComplete bearing
Axial displacement capabilityIn one direction
Number of rows1
Locating feature, bearing outer ringWithout
Bore typeCylindrical
CageMachined brass
Number of flanges, outer ring2
Number of flanges, inner ring1
Loose flangeNone
Radial internal clearanceC3
Tolerance classNormal
CoatingWithout
SealingWithout
LubricantNone
Relubrication featureWithout
Candidate for remanufacturingYes
Indicative carbon footprint for new product221 kg CO2e
Indicative carbon footprint for remanufactured product77.4 kg CO2e

Logistics

Product net weight61.4 kg
eClass code23-05-09-01
UNSPSC code31171505



Click here for catalogue information

View product table


View product guide

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:

online@iw.net.au

Details

  • Bore Size:
    170 mm
  • Material:
    Chrome Steel
  • Width:
    120 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Type:
    Brass Cage
  • Size:
    2334
  • Diameter Outside:
    360 mm
  • Style:
    Fixed Outer Ring - 1 Flange Inner (NJ)
