SKF - Cylindrical Roller Bearing Steel Cage

95 x 200 x 45 (NJ 319 ECJ/C3)
Stock Code:
NJ319ECJ-C3_SKF
$664.97 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    1 In Stock
Make an Enquiry
Add to Favourites

Description

NJ 319 ECJ C3

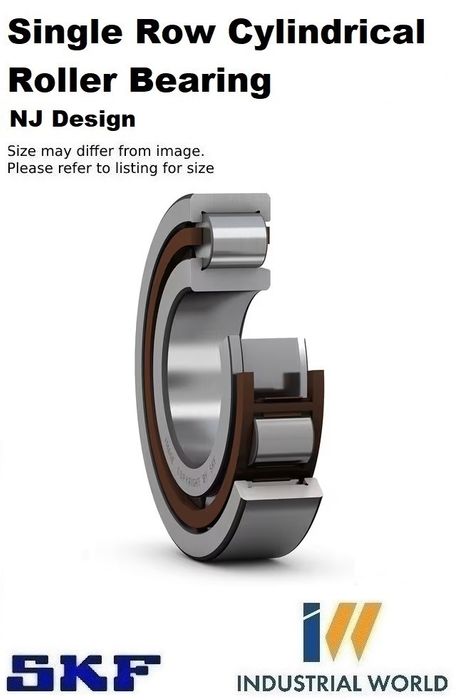

Single row cylindrical roller bearing, NJ design

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one on the inner ring, NJ design bearings can accommodate axial displacement in one direction. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

  • High radial load carrying capacity
  • Low friction
  • Long service life
  • Locate the shaft axially in one direction
  • Separable design

Dimensions

Bore diameter95 mm
Outside diameter200 mm
Width45 mm

Performance

Basic dynamic load rating390 kN
Basic static load rating390 kN
Reference speed3 600 r/min
Limiting speed4 300 r/min
SKF performance classSKF Explorer

Properties

Bearing partComplete bearing
Axial displacement capabilityIn one direction
Number of rows1
Locating feature, bearing outer ringWithout
Bore typeCylindrical
CageSheet metal
Number of flanges, outer ring2
Number of flanges, inner ring1
Loose flangeNone
Radial internal clearanceC3
Tolerance classNormal
CoatingWithout
SealingWithout
LubricantNone
Relubrication featureWithout
Indicative carbon footprint for new product22.7 kg CO2e

Logistics

Product net weight6.32 kg
eClass code23-05-09-01
UNSPSC code31171505



Click here for catalogue information

View product table


View product guide

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:

online@iw.net.au

Details

  • Bore Size:
    95 mm
  • Material:
    Chrome Steel
  • Width:
    45 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Type:
    Steel Cage
  • Size:
    319
  • Diameter Outside:
    200 mm
  • Style:
    Fixed Outer Ring - 1 Flange Inner (NJ)
