Serr VS Safety Washer - ZP - M14x22.0x1.4(Box=100)

Schnorr SERRATED - M14
Stock Code:
WOHTVZM14
$1.25 incl GST

Stock Locations

  • Ballarat:
    100 In Stock
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

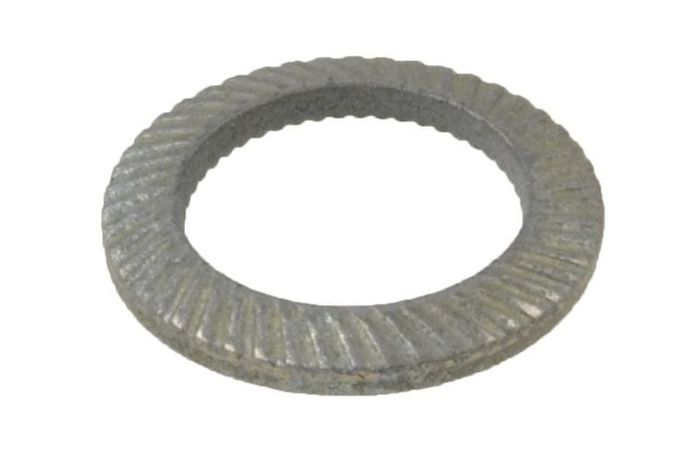

Schnorr - Safety Washer ZP VS M14X22 (Box = 100)

Original SCHNORR® Safety Washers are in the form of a disc spring but with a trapezoidal cross-section and serrations on both sides. The outer diameter is matched to the head diameter of the pan head and socket head cap screws. For screws of property classes 8.8 and 10.9, higher pretension forces might be necessary. These are covered by our reinforced washers type “VS”. Due to the conical form, optimal traction is achieved at highest positive locking due to the helical gearing

Advantages

High resistance to vibration due to positive locking of the serrations > Concentrical force transmission and uniform axial load eliminate bending torques and deformation of the bolt stem > The design of the serrations prevents friction and damage to components when tightening > Extremely high safety against loss of pretension force and loosening > Wide variety for materials and different finishes > The closed ring form results in high degree of pretensioning, while avoiding burst-open effect > Development and design of the washers take place on the basis of the screw geometrics, tightening torque as well as the constructive circumstances

Finish
ZINC PLATED (RoHS Compliant)

Zinc Plated is the most common fastener of plating due to its the low cost and shinny bright silver finish. A thin layer of zinc is applied by either electroplating or mechanically. It is intended to be used internally as it only offers an average level of protection against corrosion. External use is not recommended if corrosion is a concern. If you want a fastener that will withstand the outdoor elements choose from our either our Stainless steel or Delta Protekt range of Nord-Lock Washers

Product
TYPE VS SAFETY WASHER

Size
M14

Specification
SERRATED

Length / Dimension
x22.0x1.4


Click here for hobson schnorr product guide

Click here for schnorr safety washers - brochure

Click here for washer gauge conversion chart

Click here for schnorr comparative vibration junker test paper

Click here for schnorr safety washer advantages

Click here for schnorr safety washers type VS material C60S

Click here for schnorr safety washer - tightening torques
