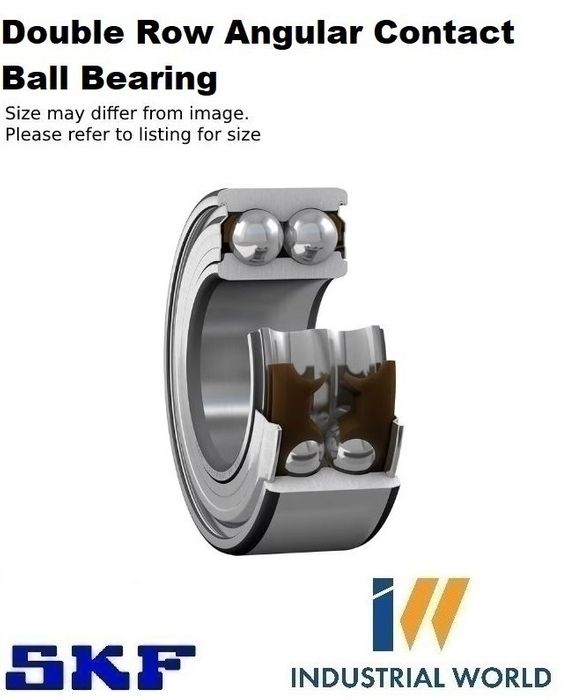

SKF - Double Row Angular Contact Ball Bearing

Stock Code:
3319-A-TN9-2Z-C3_SKF
$2,376.12 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

3319 A-2ZTN9/C3VT113
Double row angular contact ball bearing with seals or shields

Double row angular contact ball bearings, with seals or shields, correspond to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. Depending on the sealing execution, they can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.

  • High-speed capability
  • Accommodate relatively high radial loads, high axial loads in both directions and tilting moments
  • Suitable where a stiff bearing arrangement is required
  • Require less axial space than equivalent pair of single row angular contact ball bearings
  • Integral sealing prolongs bearing service life

Dimensions

Bore diameter95 mm
Outside diameter200 mm
Width77.8 mm
Contact angle30 °

Performance

Basic dynamic load rating240 kN
Basic static load rating216 kN
Reference speed3 600 r/min
Limiting speed3 200 r/min
SKF performance classSKF Explorer

Properties

Contact typeNormal contact (two-point contact)
Number of rows2
Locating feature, bearing outer ringWithout
Ring typeOne-piece inner and outer rings
CageNon-metallic
Arrangement of contact angle (double-row bearing)Back-to-back (O)
Matched arrangementNo
Universal matching bearingNo
Axial internal clearanceC3
Material, bearingBearing steel
CoatingWithout
SealingShield on both sides
Sealing typeNon-contact
LubricantGrease
Relubrication featureWithout
Indicative carbon footprint for new product34.2 kg CO2e

Logistics

Product net weight9.5 kg
eClass code23-05-08-03
UNSPSC code31171531


Click here for catalogue information

View product table

View product guide


Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    95 mm
  • Material:
    Chrome Steel
  • Width:
    773.8 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    C3 Clearance
  • Type:
    Standard
  • Size:
    3319
  • Diameter Outside:
    200 mm
  • Style:
    Polyamide Cage
