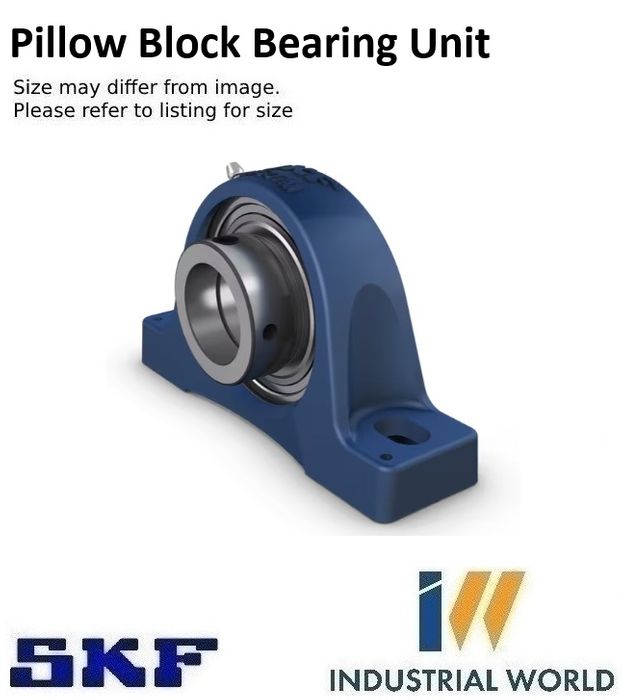

SKF - Pillow block ball bearing unit w/

narrow inner ring and eccentric locking collar
Stock Code:
SY25FM_SKF
$45.72 incl GST

Stock Locations

  • Ballarat:
    Special Order
Make an Enquiry
Add to Favourites

Description

SY 25 FM
Pillow block ball bearing unit with narrow inner ring and eccentric locking collar, cast iron, ISO standards

Pillow (plummer) block ball bearing units consist of an insert bearing mounted in a cast iron housing that can be bolted to a support surface. This variant is intended for use in applications where the direction of rotation is constant. It has a narrow inner ring and is locked onto the shaft by an eccentric locking collar, making it easy to mount.

  • Strong
  • Ready to mount
  • Lubricated and sealed bearing
  • Designed for rotation in one direction
  • Accommodate static initial misalignment

Dimensions

Attachment bolt diameter10 mm
Shaft diameter25 mm
Centre height (pillow block)36.5 mm
Housing overall width36 mm
Centre distance between bolt holes102 mm
Bearing width, total31 mm

Performance

Basic dynamic load rating14 kN
Basic static load rating7.8 kN
Limiting speed7 000 r/min
NoteLimiting speed with shaft tolerance h6

Properties

Housing typePillow block, normal base
Number of bolt holes for fasteners2
Fastening bolt hole typePlain
Retaining feature, inner ringEccentric collar
Bore typeCylindrical
Rubber seating ringWithout
Material, housingCast iron
Material, bearingBearing steel
CoatingWithout
Sealing, bearingSeal on both sides
Sealing typeContact, standard
Sealing, unitOptional end cover
LubricantGrease
Relubrication holeWith
Grease fittingWith

Logistics

Product net weight0.743 kg
eClass code23-05-08-02
UNSPSC code31171536
