Conversion Chart

SKF - Tapered Grid Coupling Hub

179.4mm dia 149.2mm Long (PHE 1120TGRSB)
Stock Code:
1120TGRSB_SKF
$1,369.50 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

PHE 1120TGRSB

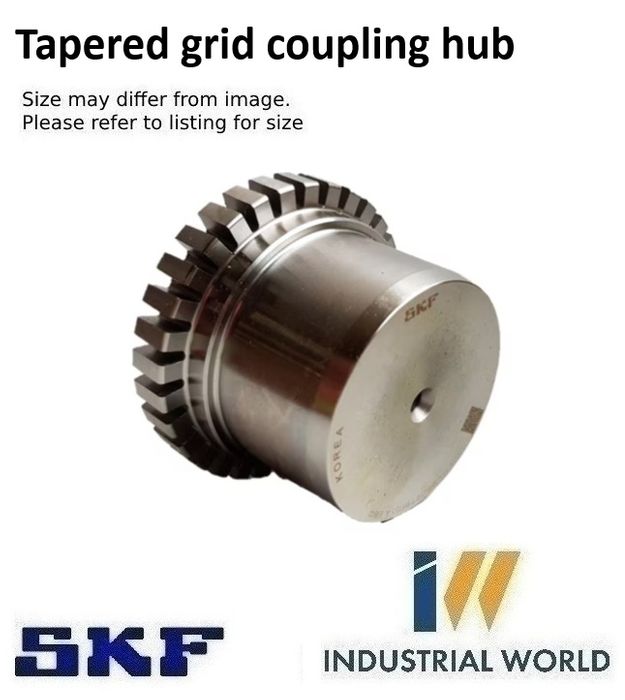

Tapered grid coupling hub

In high output (kW) and high torque applications where limited space is available, and vibration, shock loads and misalignment occur, SKF Grid Couplings are an excellent choice. The unique design of the grid and hub teeth enable these couplings to accommodate movement and stresses from all three planes. The design also makes realignment virtually unnecessary and further reduces downtime and maintenance costs.

  • Designed for high speed and general purpose
  • Suitable for applications with limited space available
  • Accommodate movement and stresses from all three planes

Dimensions

Bore diameter max136 mm
Bore diameter min60 mm
Diameter179.4 mm
Length149.2 mm

Properties

CategoryGrid couplings
ComponentHub
Size1120

Logistics

Product net weight32.2 kg
eClass code23-03-10-90
UNSPSC code31171537



Click here for catalogue information

View product table

Click here for product guide

Click here for SKF OK Shaft couplings guide

Click here for SKF OKFX – friction-coated flange guide

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au




Details

  • Brand:
    SKF
