SKF BEARING & HOUSING UNIT

Stock Code:
SY35WF_SKF
$73.76 incl GST

Stock Locations

  • Ballarat:
    Special Order
Make an Enquiry
Add to Favourites

Description

SY 35 WF

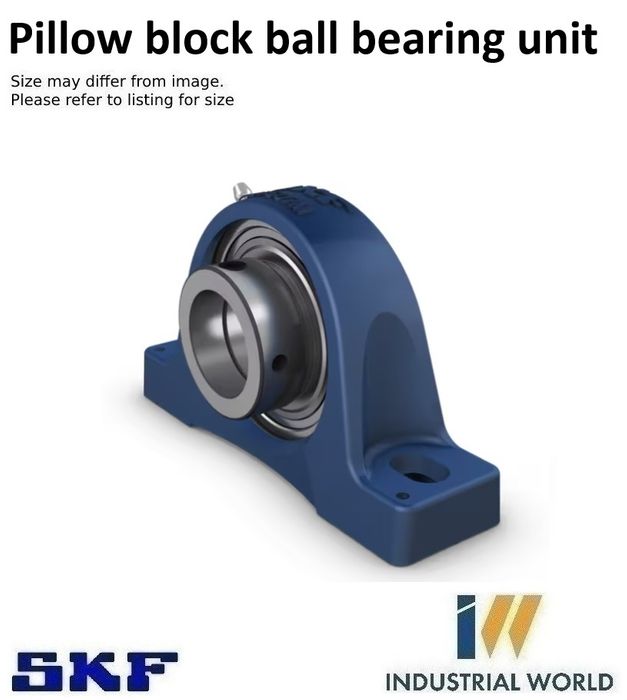

Pillow block ball bearing unit with extended inner ring and eccentric locking collar, cast iron, ISO standards

Pillow (plummer) block ball bearing units consist of an insert bearing mounted in a cast iron housing that can be bolted to a support surface. This variant is intended for use in applications where the direction of rotation is constant. It has an extended inner ring on both sides and is locked onto the shaft by an eccentric locking collar, making it easy to mount.

  • Strong
  • Ready to mount
  • Lubricated and sealed bearing
  • Designed for rotation in one direction
  • Accommodate static initial misalignment

Dimensions

Attachment bolt diameter12 mm
Shaft diameter35 mm
Centre height (pillow block)47.6 mm
Housing overall width45 mm
Centre distance between bolt holes126 mm
Bearing width, total51.1 mm

Performance

Basic dynamic load rating25.5 kN
Basic static load rating15.3 kN
Limiting speed5 300 r/min
NoteLimiting speed with shaft tolerance h6

Properties

Housing typePillow block, normal base
Number of bolt holes for fasteners2
Fastening bolt hole typePlain
Retaining feature, inner ringEccentric collar
Bore typeCylindrical
Rubber seating ringWithout
Material, housingCast iron
Material, bearingBearing steel
CoatingWithout
Sealing, bearingSeal and flinger on both sides
Sealing typeContact, standard
Sealing, unitOptional end cover
LubricantGrease
Relubrication holeWith
Grease fittingWith

Logistics

Product net weight1.59 kg
eClass code23-05-08-02
UNSPSC code31171536
