SKF BEARING & HOUSING UNIT

Stock Code:
SY65TF_SKF
$169.14 incl GST

Stock Locations

  • Ballarat:
    Special Order
Make an Enquiry
Add to Favourites

Description

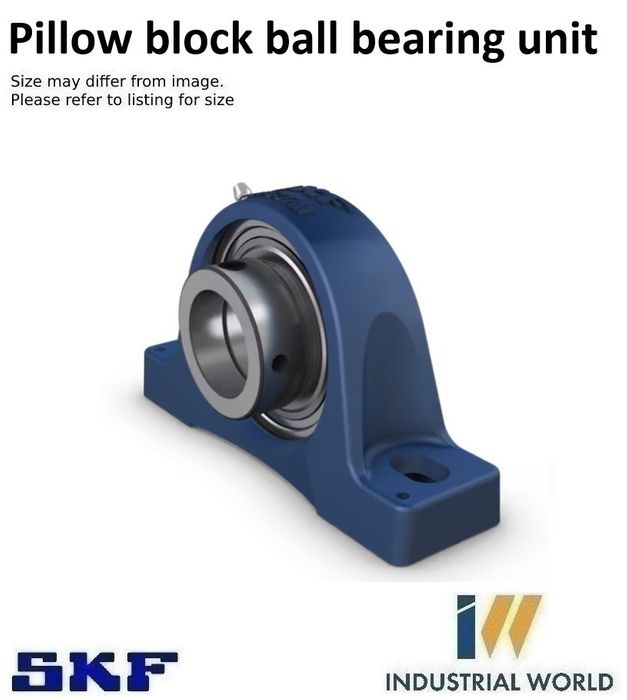

SY 65 TF
Pillow block ball bearing unit with extended inner ring and set screw locking, cast iron, ISO standards

Pillow (plummer) block ball bearing units consist of an insert bearing mounted in a cast iron housing that can be bolted to a support surface. This variant is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening a set screw on the inner ring, making it easy to mount.

  • Strong
  • Ready to mount
  • Lubricated and sealed bearing
  • Quick locking onto the shaft
  • Cost-effective

Dimensions

Attachment bolt diameter20 mm
Shaft diameter65 mm
Centre height (pillow block)76.2 mm
Housing overall width65 mm
Centre distance between bolt holes203 mm
Bearing width, total68.3 mm

Performance

Basic dynamic load rating57.2 kN
Basic static load rating40 kN
Limiting speed3 000 r/min
NoteLimiting speed with shaft tolerance h6

Properties

Housing typePillow block, normal base
Number of bolt holes for fasteners2
Fastening bolt hole typePlain
Retaining feature, inner ringSet screws
Bore typeCylindrical
Rubber seating ringWithout
Material, housingCast iron
Material, bearingBearing steel
CoatingWithout
Sealing, bearingSeal and flinger on both sides
Sealing typeContact, standard
Sealing, unitOptional end cover
LubricantGrease
Relubrication holeWith
Grease fittingWith

Logistics

Product net weight4.69 kg
eClass code23-05-08-02
UNSPSC code31171536

Click here for catalogue information

View product table

View product guide
