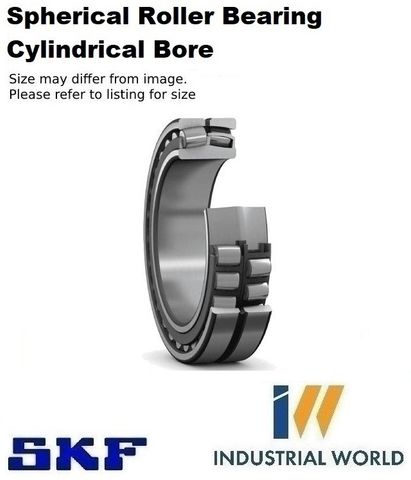

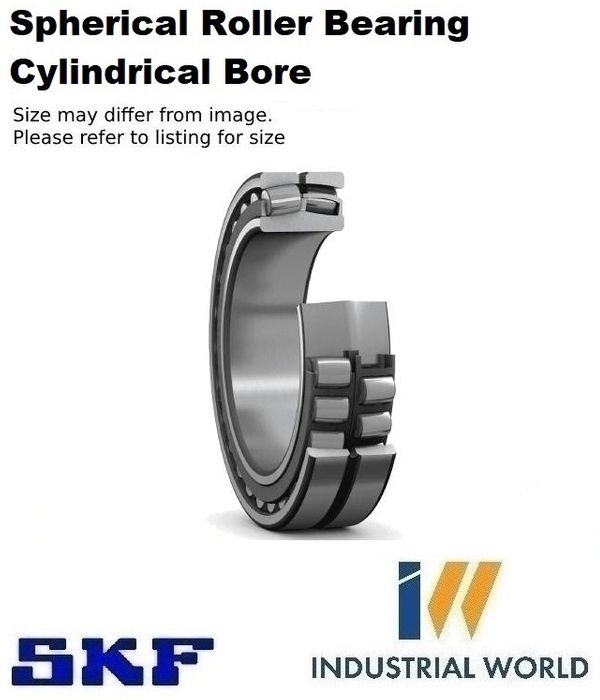

SKF - Spherical Roller Bearing Cylindrical Bore

Stock Code:
21307-CC_SKF
$126.97 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

21307 CC
Spherical roller bearing

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. They can be used in a modular system, including housings, sleeves and nuts.

  • Accommodate misalignment
  • High load carrying capacity
  • Low friction and long service life
  • Increased wear resistance

Dimensions

Bore diameter35 mm
Outside diameter80 mm
Width21 mm

Performance

Basic dynamic load rating79.2 kN
Basic static load rating72 kN
Reference speed8 500 r/min
Limiting speed12 000 r/min
SKF performance classSKF Explorer

Properties

Number of rows2
Locating feature, bearing outer ringWithout
Bore typeCylindrical
CageSheet metal
Radial internal clearanceCN
Tolerance class for dimensionsNormal
Tolerance class for run-outP5
SealingWithout
LubricantNone
Relubrication featureWithout
Indicative carbon footprint for new product1.9 kg CO2e

Logistics

Product net weight0.533 kg
eClass code23-05-09-11
UNSPSC code31171510

Click here for catalogue information

View product table

Click here for product guide

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    35 mm
  • Material:
    Chrome Steel
  • Width:
    21 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    Standard Clearance
  • Type:
    Cylindrical Bore
  • Size:
    21307
  • Diameter Outside:
    80 mm
