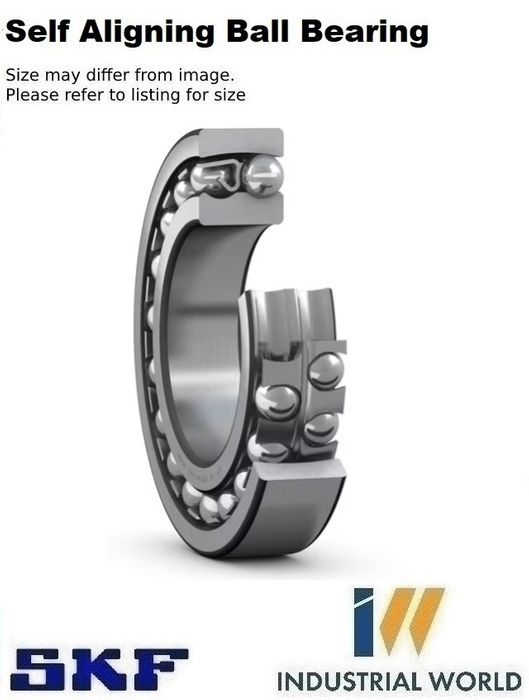

SKF - SELF ALIGNING BALL BEARING

80 x 170 x 39
Stock Code:
1316_SKF
$364.85 incl GST

Stock Locations

  • Ballarat:
    Special Order
Make an Enquiry
Add to Favourites

Description

1316
Self-aligning ball bearing

Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection.

  • Accommodate static and dynamic misalignment
  • Excellent high-speed performance
  • Excellent light load performance
  • Low friction

Dimensions

Bore diameter80 mm
Outside diameter170 mm
Width39 mm

Performance

Basic dynamic load rating88.4 kN
Basic static load rating33.5 kN
Reference speed7 500 r/min
Limiting speed5 300 r/min

Properties

Retaining feature, inner ringNone
Locating feature, bearing outer ringWithout
Number of rows2
Bore typeCylindrical
CageSheet metal
Radial internal clearanceCN
Tolerance classNormal
Material, bearingBearing steel
CoatingWithout
SealingWithout
LubricantNone
Relubrication featureWithout
Indicative carbon footprint for new product14.9 kg CO2e

Logistics

Product net weight4.14 kg
eClass code23-05-08-06
UNSPSC code31171532

Click here for catalogue information

View product table

Click here for product guide

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    80 mm
  • Material:
    Chrome Steel
  • Width:
    39 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Type:
    parallel bore
  • Size:
    1316
  • Diameter Outside:
    170 mm
  • Style:
    OPEN
