Click to Enlarge

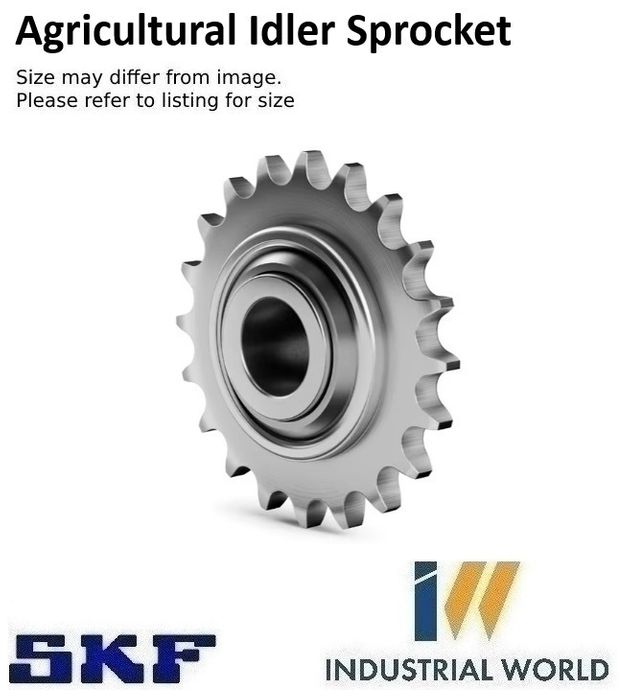

SKF - Idler Sprocket 10B-1 - 19TH

16.256 x 104.58 x 9.1 / 18.288 - Pitch 5/8 In

Stock Code:

PHSU10B1A19-S16M_SKF

$38.23 incl GST

Stock Locations

Ballarat:

Special Order
Shepparton:

Special Order

Make an Enquiry

Add to Favourites

Description

PHSU 10B1A19-S16M
Idler sprocket unit for agricultural applications

Agricultural idler sprocket units are a ready-to-mount solution for chain driven agricultural machines. Available in many sizes, they consist of a sprocket and an agricultural bearing, providing a precise fit between the two components. Made from forged steel, they can also be provided with black oxide or zinc plated surface coating. Customized versions with non-standard features such as hardened teeth and special bearing are also available.

Manufactured according to international global standards

Suitable Applications

Combine harvesters
Corn heads
Round balers
Bale wrappers
Grain drills
Manure spreaders

Features

High performance bearing
High quality seal
Premium grease fill
Smooth rotation with less friction

Benefits

Better machine performance
Longer bearing life
Lower maintenance cost
Less downtime

Dimensions

Pitch	15.875 mm
Pitch diameter of sprocket	96.45 mm
Outside diameter	104.58 mm
Sprocket thickness	9.1 mm
Width, total	18.288 mm
Bore diameter	16.256 mm
Diameter of bearing seat	40 mm
