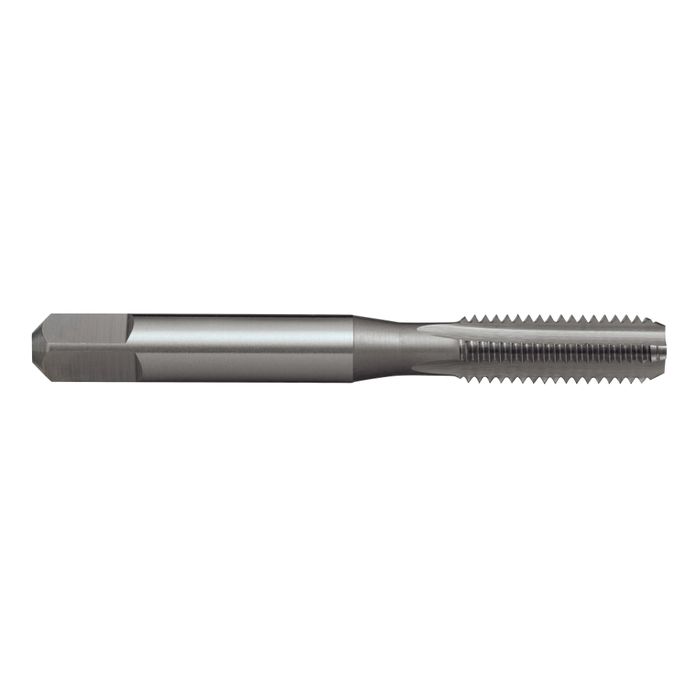

Sutton - Metric M42 x 4.5 Straight Flute Tap

Bottoming - HSS
Stock Code:
SUT-T3864200
$659.82 incl GST

Stock Locations

  • Ballarat:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

Straight Flute Taps – M – Bottoming

Features

  • General purpose use
  • Suitable for both hand and machine operations
  • Depths up to approx. 1 x d1
  • Suitable for materials up to 1000N/mm2

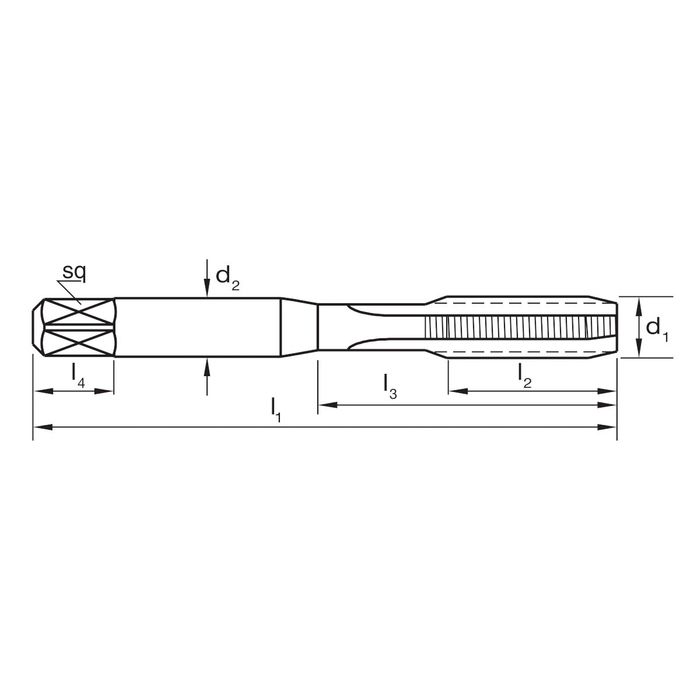

Range

  • Size M42x4.5
  • Length l1 (mm) 170
  • Length l2 (mm) 60
  • Diameter d2 (mm) 28
  • sq 22.4
  • Length l4 (mm) 26
  • z 4
  • Drill Ø 37.5

Specifications

  • Designation N
  • Material HSS
  • Finish Brt
  • Max Cut Depth 1xD
  • Shank Form A
  • Standard ISO529
  • Thread Form Metric
  • Thread Tolerance Class 6H
  • Lead Bottoming

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
