Conversion Chart

RIVET NUT FLAT RND KNURL OPEN Z/P (Box=2500

HEC M10X21.5
Stock Code:
NRMSZFKOM10215
$0.66 incl GST

Stock Locations

  • Ballarat:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

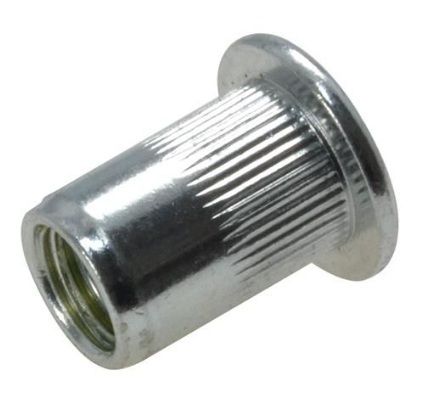

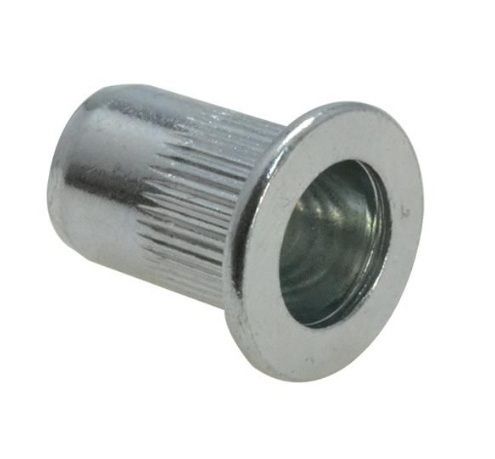

RIVET NUT FLAT RND KNURL OPEN Zinc Plate (Box=2500)

(Price per unit)

Finding the right fastener for thin or brittle materials—or in situations where there’s no access to the back of the workpiece—can be challenging. In these cases, nutserts (also known as rivet nuts or threaded inserts) provide an effective solution.

Nutserts are a variation of standard rivets, designed with an internally threaded body that allows a bolt or screw to be used after installation. They are especially useful as a blind fastening option, meaning they can be installed from one side only.

Key points:

  • Ideal for thin or brittle materials
  • Suitable where rear access is not possible
  • Also known as:
    • Rivet nuts
    • Blind nuts
    • Blind rivet nuts
    • Rivnuts
    • Threaded inserts
  • Feature a tubular body that may be:
    • Round, splined/knurled, or smooth
    • Square or hexagonal in shape
  • Internally threaded and often counterbored
  • Installed as a blind fastener (one-sided access only)
  • Widely used due to their versatility and ease of installation
Product
RIVET NUT FLAT RND KNURL OPEN

Finish
ZINC PLATED (ROHS COMPLIANT)

Product is electroplated with zinc which is then passivated with a transparent conversion layer. Z/P products are recommended for indoor & non-corrosive environments.

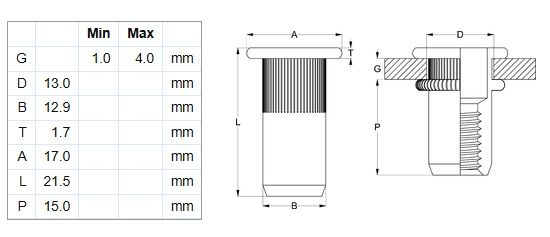

Size
M10

Specification
HEC

Length / Dimension
21.5

Thread
M10-1.50


Click here for Rivet Nut Flat Round Knurl Open (Zinc Plate)

Click here for Hobson Rivet Nut Flat Round Knurl Open (Zinc Plate) performance data

Click here for Hobson DrillX product guide

Click here for Hobson rivet product guide

Click here for product finish comparison

Click here for Hobson rivet nut range

Details

  • Thread Size:
    M10-1.50
  • Left or Right Hand:
    Right Hand
  • Material:
    Steel - Zinc Plated
  • Brand:
    Hobson
  • Metric/Imperial:
    Metric - Standard
  • Type:
    Each
