Nyloc Hex Nut - 304 SS - M5 (Box=100)

DIN 985 / A2 - M5
Stock Code:
NN04PCM05
$0.09 incl GST

Stock Locations

  • Ballarat:
    1,000 In Stock
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

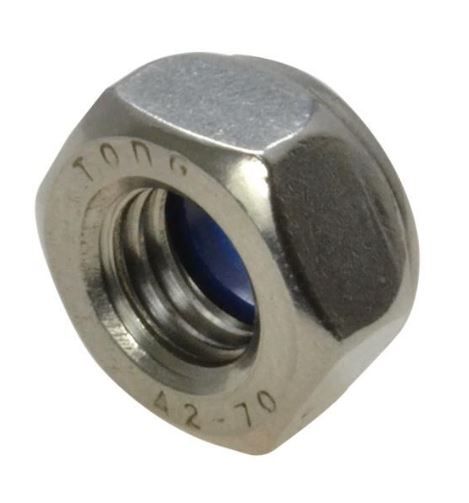

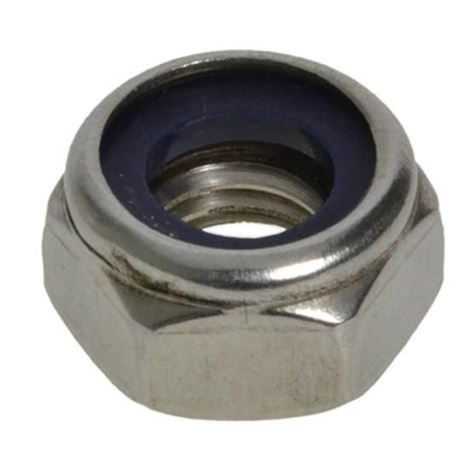

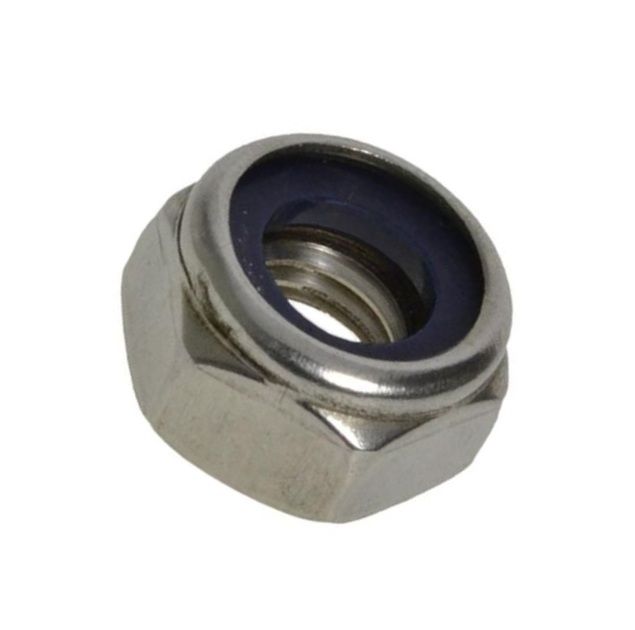

Nyloc Hex Nut - M5 304 Stainless (Box=100)

(Price per unit)

Nyloc Insert Nuts feature a nylon ring at the top of the nut that locks onto the bolt threads once fully tightened. This creates a friction-based locking action that helps prevent loosening due to vibration, removing the need for a separate lock washer.

  • Nylon insert grips the bolt threads when the nut is seated
  • Locking action is based on friction, not additional hardware
  • Helps resist loosening under vibration and movement
  • Designed for single-use applications

The nylon insert deforms during the first installation, which means its locking effectiveness is reduced if the nut is reused.

Nuts should be selected to match a compatible bolt grade and material system to ensure proper strength and performance.

Heat Tolerance.  For high temperature applications, ie above 120 °C , use an all metal locking nut, (e.g. Stover, Conelock, K-Lock) which does not have nylon and is rated to the same temperature as the steel itself.

Typical applications - Automotive, machinery & equipment, construction, marine & outdoor equipment, consumer products

Also known as: Nyloc Nuts, Nylon Insert Lock Nuts, Nyloc Insert Nuts, Self-Locking Nuts (Nylon), Polystop Nuts

Product
NYLOC HEX NUT

Finish
304 STAINLESS

Stainless Steel A2-70 G304 is the most popular grade of stainless steel. It is very practical because of its excellent corrosion protection in most environments.

Product
NYLOC HEX NUT

Size
M5

Specification
DIN 985 / A2

Thread
M5-0.80


Click here for hobson stainless product guide

Click here for hobson technical anti vibration paper

Click here for misconceptions about stainless steel

Click here for stainless steel - chemical properties - prevent galling

Click here for spanner selection for hex bolts & nuts metric

Details

  • Thread Size:
    M5-0.80
  • Left or Right Hand:
    Right Hand
  • Material:
    Stainless Steel - 304 - Grade A2
  • Brand:
    Hobson
  • Metric/Imperial:
    Metric - Standard
  • Type:
    Each
