TSUBAKI TORQUE LIMITER 4.5

Stock Code:
TL350-2_TSUBAKI
$263.82 incl GST

Stock Locations

  • Ballarat:
    Special Order
Make an Enquiry
Add to Favourites

Description

TL350-2 TSUBAKI

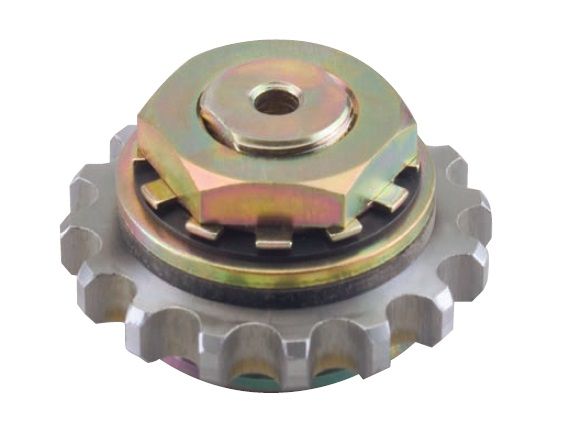

TL350-2, TL Series Torque Limiter

Traditional machine protection. Friction-type construction. Slip-torque setting is done by simply tightening the adjusting nut or bolts.

Specifications

  • Torque [Min] - 25.0 lb·ft,  34.0 N·m
  • Torque [Max] - 110.0 lb·ft, 149.0 N·m
  • Speed [Max] - 1800 rpm
  • Bore Size [Max] - 0.984 in, 25.00 mm
  • Bushing Lengths - 0.177, 0.256, 0.374 in - 4.50, 6.50, 9.50 mm

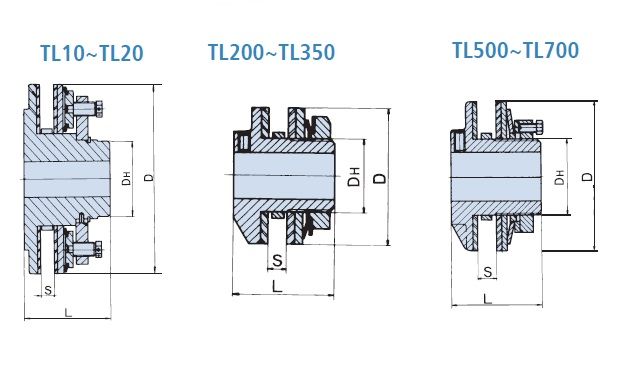

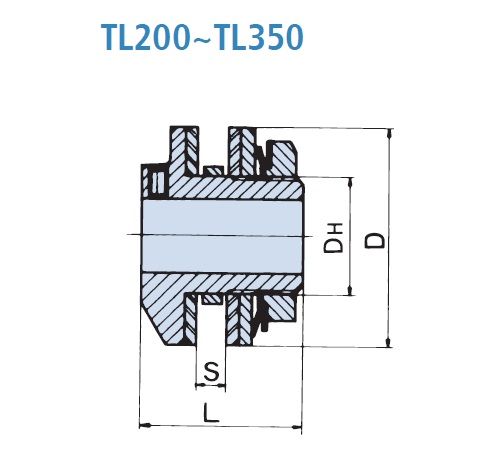

  • L - 2.440 in, 62.00 mm
  • D - 3.500 in, 89.00 mm
  • DH 1.650 in, 42.00 mm
  • S [Max] 0.630 in, 16.00 mm
  • Weight 1.200 kg, 2.650 lb

Details

  • Brand:
    Tsubaki
