Spring Washer Flat - ZP - 3/4x1/4 (Box=100)

ANSI B18.21.1 / SPRING STEEL - 3/4
Stock Code:
WRMSZS075025018
$0.64 incl GST

Stock Locations

  • Ballarat:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

Spring Washer Flat - Zinc Plate - 3/4x1/4 (Box=100)

(Price per unit)

Spring lock washers are flat washers that are cut and twisted into a slight spiral or corkscrew like shape.
  • When tightened, the washer flattens under load
  • If the bolt begins to loosen, the cut ends dig into both the bolt head and the contact surface
  • This biting action helps resist further rotation and loosening
  • They are widely used due to their simplicity and low cost
  • One of the most common and inexpensive types of locking washer.

Also identified as Spring, Split Lock, Grover, Single-Coil Spring Washers

Washers must be selected to match a compatible bolt , nut grade and material system to ensure proper strength and performance.

Product

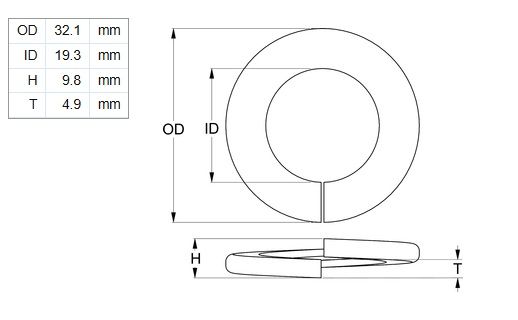

SPRING WASHER FLAT SECTION

Finish
ZINC PLATED (RoHS Compliant)

Product is electroplated with zinc whcih is then passivated with a transparent conversion layer. Z/P products are recommended for indoor & non corrosive environments. Compatible with a zinc coated fastener.

Size
3/4

Specification / Reference
ANSI B18.21.1 / SPRING STEEL

Length / Dimension
x1/4


Click here for hobson washers product guide

Click here for types of washers

Click here for washers selection guide

Click here for washer gauge conversion chart

Click here for product finish comparison

Details

  • Brand:
    Hobson
  • Metric/Imperial:
    Imperial
  • Type:
    Each
