Flat Rnd Washer H9 Impact PLN 7/8x45.0x4.0

43-49 HRC HARDNESS - 7/8 (Box=50)
Stock Code:
WRH9P087
$2.29 incl GST

Stock Locations

  • Ballarat:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

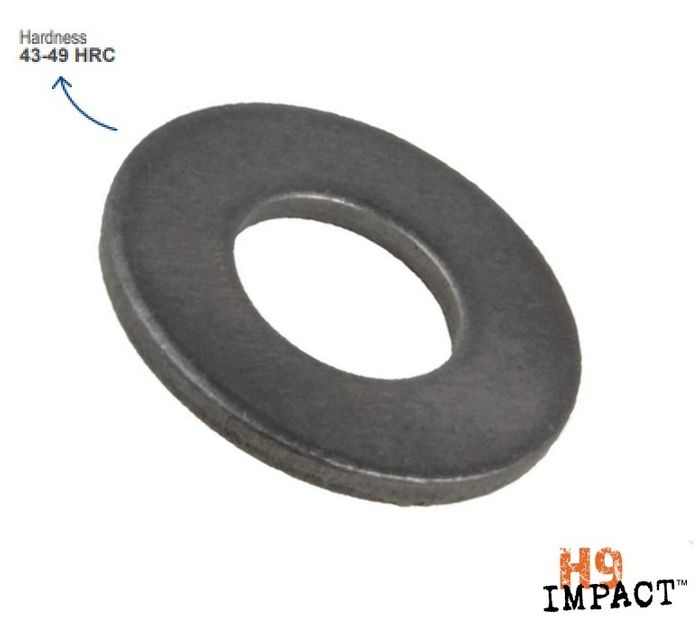

Flat Round Washer H9 Impact Plain 7/8x45.0x4.0

(Price per unit)

Designed for high-performance applications, the H9 Impact Washer is manufactured from hardened steel and features a hardness rating of 43–49 HRC, ensuring strength and durability under demanding conditions.

Flat washers are used to increase the bearing surface beneath a nut or bolt head, distributing the clamping force over a larger area.

They are particularly useful when fastening soft materials or components with oversized or irregularly shaped holes. A flat washer also provides a smooth, even surface for the nut or bolt head to bear against, helping to improve load distribution and reduce the risk of surface damage.

Flat washers are the standard washer used in most bolted connections and are typically installed beneath the nut, the bolt head, or both.

To ensure optimum strength, corrosion resistance, and long-term performance, flat washers should be selected from a material compatible with the bolt and nut. For example, use stainless steel washers with stainless steel fasteners, and plain washers with plain fasteners.

Product

H9 IMPACT WASHER

Finish

PLAIN

Black or plain finish is unfinished (bare steel). It has no actual protective coating. There may be an oil residue that provides shelf life but no corrosion protection when used. Depending on the material grade and heat treatment the colour may vary from a shiny oily appearance to a dull black finish.

Size
7/8

Specification / Reference
43-49 HRC HARDNESS

Length / Dimension
x45.0x4.0

Product Guides & Technical Resources


Hobson washers product guide

Types of washers

Washer selection guide

Washer gauge conversion chart

Hobson product finish comparison

Details

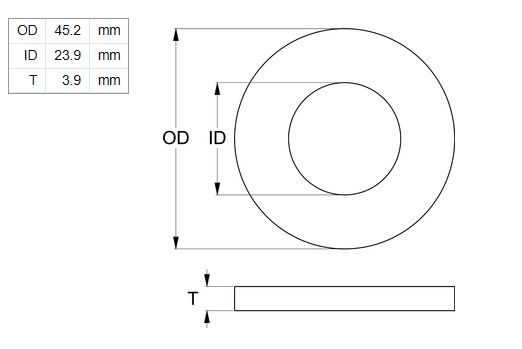

  • Bore Size:
    23.9 mm (nom 7/8 In)
  • Material:
    Steel - Plain
  • Width:
    3.9 mm (5/32 Inch)
  • Brand:
    Hobson
  • Metric/Imperial:
    Imperial
  • Type:
    Each
  • Diameter Outside:
    45.2 mm (1 25/32 Inch)
  • Style:
    43-49 HRC
