Square Washer Xbolt ZYP M12 xx50x3 (Box=200)

HEC / MILD STEEL - M12
Stock Code:
WSMSYX12050030
$0.89 incl GST

Stock Locations

  • Ballarat:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

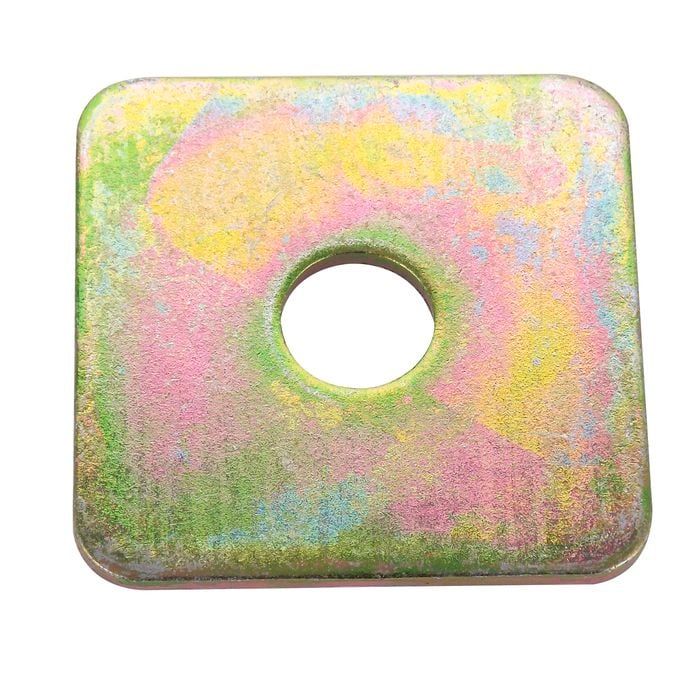

Square Washer Xbolt Zinc Yellow Passivate M12 xx50x3 (Box=200)

(Price per unit)

Square washers are thick steel washers with a large square profile designed to distribute bolt clamping force over a wider area.

They are commonly used in timber and other soft materials where standard round washers may be pulled through under load.

Square Washer XBolt - Specifically suited to screw bolts as their oversized holes allow them to fit over the larger XBolt threads

Key points:

  • Wide square surface helps spread load and reduce pull-through in softer materials
  • Commonly used in timber construction such as deck framing, retaining walls, and general softwood structures
  • Square design helps prevent the washer from rotating within the material
  • Main use - Securing timber frame bottom plates to concrete slabs
  • Available in a variety of finishes for different corrosion resistance needs

Note: For galvanic compatibility always pair the washer material to the bolt & nut: stainless bolt & nut to stainless washer, galvanised bolt & nut to galvanised washer.

Mixing materials can create corrosion & less durability in damp, wet environments.

Further information in the guides below

Product
XBOLT SQUARE WASHER

Finish
ZINC YELLOW PASSIVATE

Zinc Yellow plated refers to the colour of the chromate that is applied after zinc has been applied. Yellow chromate increases the overall protection of the finish and is the preferred plating finish for most construction fasteners due to the good level of protection against corrosion. It can be used externally but does not offer the same protection as Galvanised or Stainless

Size
M12

Specification / Reference
HEC / MILD STEEL

Length / Dimension
x50x3


Click here for hobson washers product guide

Click here for product finish comparison

Click here for types of washers

Click here for washer gauge conversion chart

Click here for hobson XBolt square washer ZYP

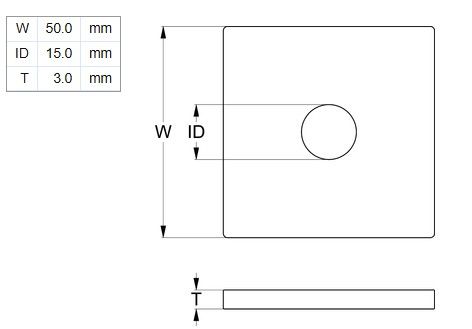

Details

  • Bore Size:
    15 mm (nom 12 mm)
  • Material:
    Steel - Zinc Yellow
  • Width:
    3 mm
  • Brand:
    Hobson
  • Metric/Imperial:
    Metric
  • Type:
    Each
  • Diameter Outside:
    50 mm
  • Style:
    Mild Steel
