High Stress HS Washer 321B M12x24.0x3.0 (Box=20)

Schnorr DIN 267 - M12
Stock Code:
WOHTLEM12
$31.68 incl GST

Stock Locations

  • Ballarat:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

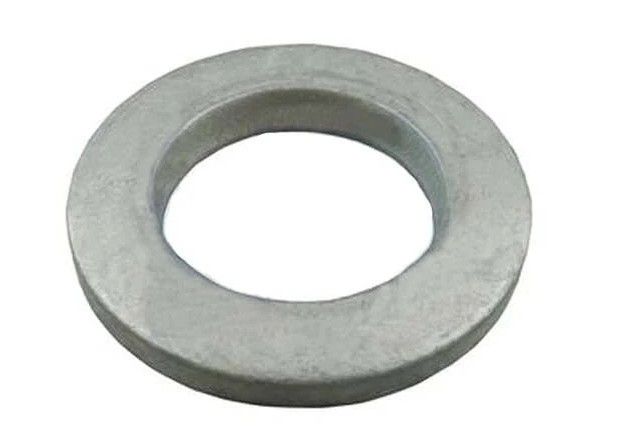

High Stress HS Washer 321B M12x24.0x3.0 (Box=20)

(Price per unit)

Original Schnorr High stress load washers, HS

  • This safety washer is, in principle, a load washer with a smaller outer diameter than those according to DIN 6796.
  • A notable feature of these washers is the slight curved form, which provides a progressively increasing characteristic curve.
  • Despite the smaller outside diameter dimensions, this makes it possible to achieve the same load as the load washers according to DIN 6796.
  • These washers are primarily used when the space available is insufficient for standardised load washers.

Note

To ensure optimum strength, corrosion resistance, and long-term performance, washers should be selected from a material compatible with the bolt and nut. For example, use stainless steel washers with stainless steel fasteners, and Zinc plate washers with Zinc plate fasteners.

Product

LOAD WASHER

Finish
GEOMET 321B

Geomet is a proprietary water-based coating dispersion containing metal oxides, metalic zinc and aluminium flakes. The zinc and aluminium platelets align in multiple layers forming a metalic silver-gray coting. Applied as a liquid, the coating becomes totally inorganic after curing at 575-600 deg F (300-315 Deg C). (Further details below)

Size
M12

Specification / Reference
DIN 267

Length / Dimension
x24.0x3.0
