High Stress HS Washer - ZP - M27x50.0x6.5 (Box=5)

Schnorr DIN 267 - M27
Stock Code:
WOHTLZM27
$197.08 incl GST

Stock Locations

  • Ballarat:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

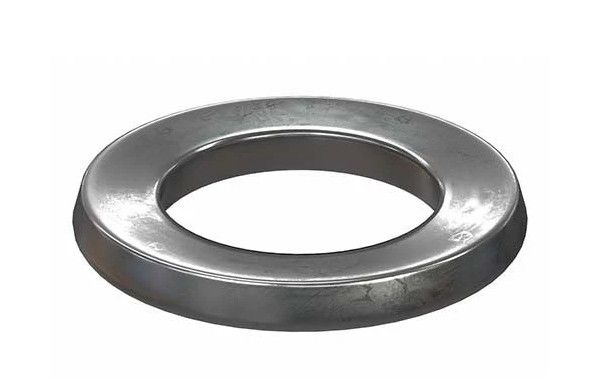

High Stress HS Washer - Zinc Plate - M27x50.0x6.5 (Box=5)

(Price per unit)

Original Schnorr High stress load washers, HS

  • This safety washer is, in principle, a load washer with a smaller outer diameter than those according to DIN 6796.
  • A notable feature of these washers is the slight curved form, which provides a progressively increasing characteristic curve.
  • Despite the smaller outside diameter dimensions, this makes it possible to achieve the same load as the load washers according to DIN 6796.
  • These washers are primarily used when the space available is insufficient for standardised load washers.

To ensure optimum strength, corrosion resistance, and long-term performance, washers should be selected from a material compatible with the bolt and nut. For example, use stainless steel washers with stainless steel fasteners, and Zinc plate washers with Zinc plate fasteners.

Product

LOAD WASHER

Finish
ZINC PLATED (RoHS Compliant)

Zinc Plated is the most common fastener of plating due to its the low cost and shinny bright silver finish. A thin layer of zinc is applied by either electroplating or mechanically. It is intended to be used internally. External use is not recommended if corrosion is a concern. Choose from the galvanised or stainless steel range for external use.

Size
M27

Specification / Reference
DIN 267

Length / Dimension
x50.0x6.5
