Volute Spring Washer 316 SS M16/M20 x60x26

AS 2837 / A4 - M16/M20 (Box=50)
Stock Code:
WV16PM20
$18.22 incl GST

Stock Locations

  • Ballarat:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

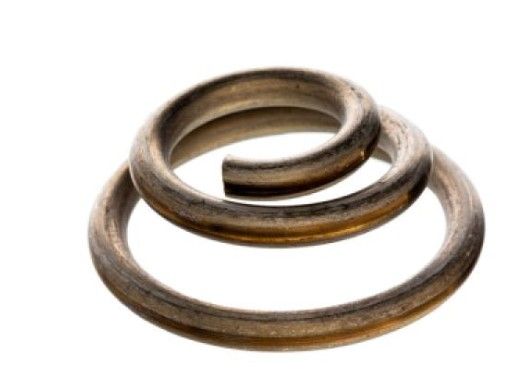

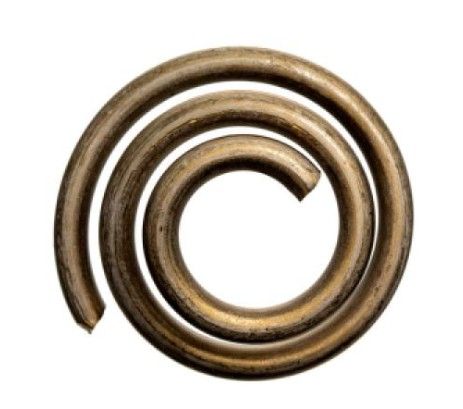

Volute Spring Washer 316 Stainless Steel M16/M20 x60x26

(Price per unit)

A volute spring washer is a type of spring washer made from a spiral-shaped strip of material that provides a spring force when compressed.

Spring Volute Washers are used within applications where vibration is a concern.

The washer compresses when the fastener is tightened which adds tension and slows the rate of loosening.

Advantages

  • Higher spring force than a standard split lock washer.
  • Better load distribution.
  • Suitable for heavy-duty applications.
  • Can accommodate larger deflections.

Note: To ensure optimum strength, corrosion resistance, and long-term performance, flat washers should be selected from a material compatible with the bolt and nut. For example, use stainless steel washers with stainless steel fasteners, and galvanised washers with galvanised fasteners.

Product

VOLUTE SPRING WASHER

Finish
316 STAINLESS

Marine Grade Stainless Steel A4-70 (316) offers excellent corrosion resistance for demanding environments. Ideal for marine, coastal, chemical, and food-processing applications where long-lasting performance is required.

Size
M16/M20

Specification / Reference
AS 2837 / A4

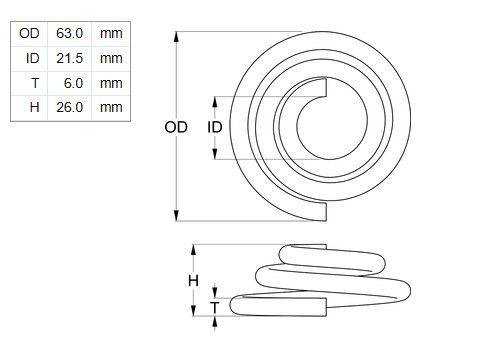

Length / Dimension
x60x26

Product Guides & Technical Resources


Hobson washers product guide

Types of washers

Washer selection guide

Washer gauge conversion chart

Product finish comparison

Details

  • Brand:
    Hobson
  • Metric/Imperial:
    Metric
  • Type:
    Each
