Security Mesh Clip Washer HDG M8 x24X24X2.5

HEC - M8
Stock Code:
HWCMSGM08024025
$0.92 incl GST

Stock Locations

  • Ballarat:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

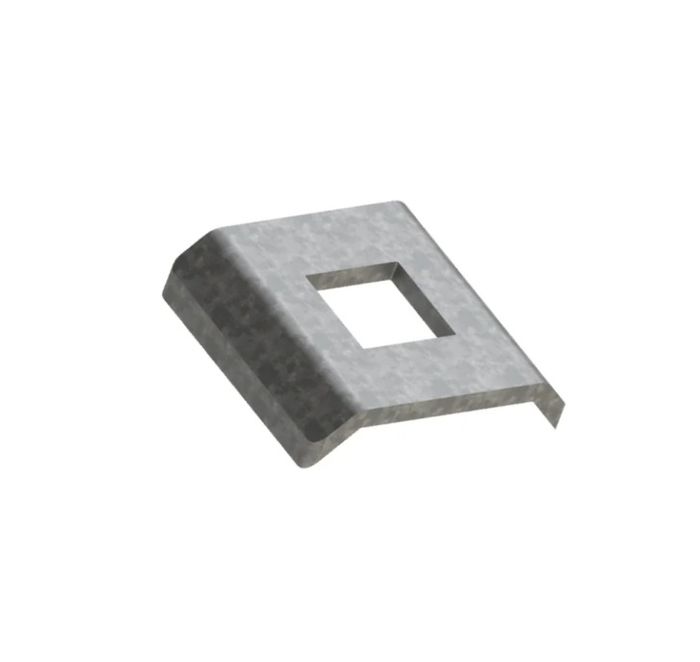

Security Mesh Clip Washer Hot Dipped Galvanised M8 x24X24X2.5

(Price per unit)

A Security Mesh Clip Washer is a specialized square washer/clip used to secure welded security mesh panels (such as 358 security fencing) to fence posts or support rails.

Instead of a standard round washer, the clip spans across the mesh wire and clamps it firmly when tightened with a bolt & nut.

Typical Applications

Used in 358 security fencing around

  • Prisons
  • Airports
  • Schools
  • New housing and unit complexes.
  • Train stations
  • Bridges
  • Electrical substations

Pair it with a shear nut on the cup head bolt so it cannot be tampered with.

How it works

Security mesh clip is bolted in with the fastener and locks the mesh fencing in place. The length required will be dependent on the fencing.

(Refer to guide below)

Product

SECURITY MESH CLIP

Finish
HOT DIP GALVANISED

Galvanised is a dull greyish colour and is slightly rough in appearance. It is mainly used outdoors due to its superior corrosion resistance and longevity in rugged environments. Often known as HDG, it provides strong protection against rust.

Size
M8

Specification / Reference
HEC

Length / Dimension
24X24X2.5
