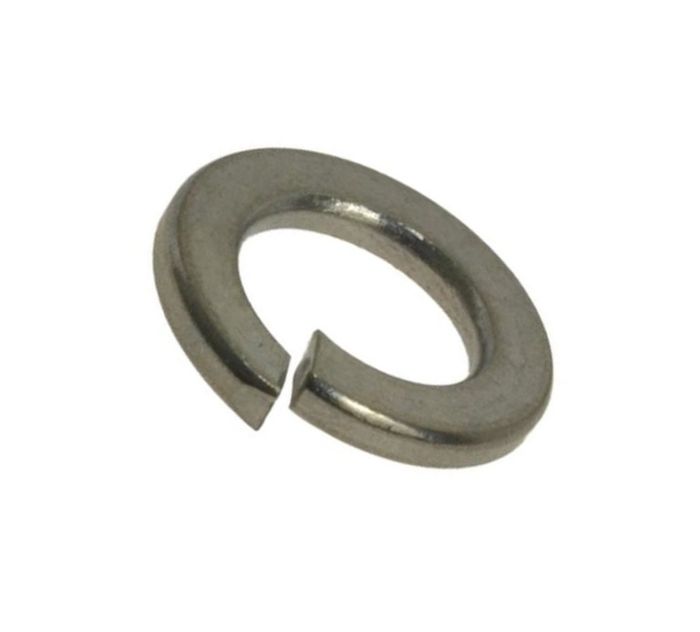

Spring Washer Flat 316 SS M8x14.8x2.0 (Box=100)

HEC 127B / A4 - M8

Stock Code:

WR16SM08

$0.13 incl GST

Stock Locations

Ballarat:

Special Order

Make an Enquiry

Add to Favourites

Description

DESCRIPTION

Spring Washer Flat 316 Stainless Steel M8x14.8x2.0 (Box=100)

(Price per unit)

Spring lock washers are flat washers that are cut and twisted into a slight spiral or corkscrew like shape.

When tightened, the washer flattens under load
If the bolt begins to loosen, the cut ends dig into both the bolt head and the contact surface
This biting action helps resist further rotation and loosening
They are widely used due to their simplicity and low cost
One of the most common and inexpensive types of locking washer.

Also identified as Spring, Split Lock, Grover, Single-Coil Spring Washers

Washers must be selected to match a compatible bolt , nut grade and material system to ensure proper strength and performance.

Product

SPRING WASHER

Finish

316 STAINLESS

Marine Grade Stainless Steel A4-70 G316 is the ultimate corrosion resistance fastener. Designed to be used in all conditions. It is the best material to use in marine, coastal, chemical and food environments.

Size

Specification / Reference

HEC 127B / A4

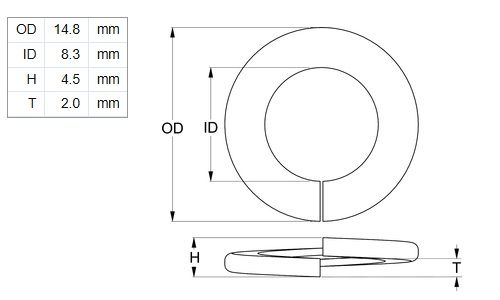

Length / Dimension

x14.8x2.0
