K0 Structural Washer - HDG - M22 (Box=350)

AS1252:2016 K0 / 35-41 HRC - M22

Stock Code:

WRK0GM22

$1.17 incl GST

Stock Locations

Ballarat:

Special Order

Make an Enquiry

Add to Favourites

Description

DESCRIPTION

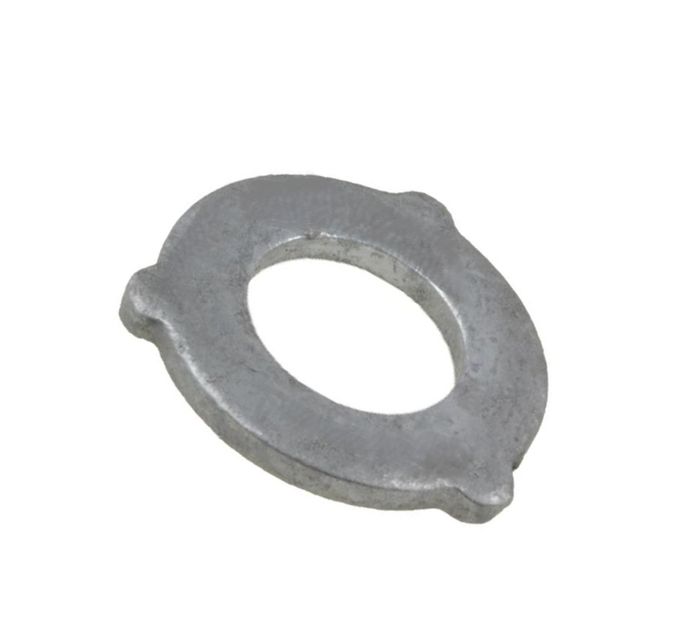

K0 Structural Washer - Hot Dipped Galvanised - M22 (Box=350)

(Price per unit)

K0 Structural Washers are high-strength hardened flat washers designed for use with the K0 Structural Bolt and Nut assembly system. Manufactured to meet AS 1252:2016 requirements, they provide reliable load distribution in high-strength structural connections.

Key Features:

Designed specifically for matched K0 Structural Bolt and Nut assemblies.
Installed under both the bolt head and nut to distribute HSFG bolt preload evenly.
Helps prevent indentation and damage to connected steel plates.
Galvanised finish for improved durability.
Class 8.8 equivalent hardness for structural performance.
Suitable only for use with compatible K0 structural bolts and nuts.

Easy Identification:

Features three distinct external nibs (bumps/dimples) around the washer edge.
The nibs provide a quick visual check for installers and inspectors.
Washers without the three nibs are not classified as structural-rated K0 washers.

Important: Use only approved K0 components

For compliant K0 connections, always use the correctly matched K0 bolt, K0 nut, and K0 washer. Do not use a K0 washer with a standard hex bolt or replace it with an alternative washer, as this may compromise the integrity of the connection and void AS 1252:2016 certification.

Product

K0 STRUCTURAL WASHER

Finish

HOT DIP GALVANISED

Galvanised is a dull greyish colour and rough in appearance. HDG products are used where a high level of corrosion resistance is required. HDG products are recommended for long term outdoor applications.

Note: galvanised nuts are typically paired with galvanised bolts to prevent uneven corrosion (called galvanic corrosion). Mixing them with non-coated or different metals can shorten their lifespan.

Size

M22

Specification / Reference

AS1252:2016 K0 / 35-41 HRC
