Conversion Chart

Flat Rnd Washer Sampson - ZYP - 1-1/4 (Box=10)

ASTM F436 / 38-45HRC - 1-1/4
Stock Code:
WR43Y125
$3.30 incl GST

Stock Locations

  • Ballarat:
    168 In Stock
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

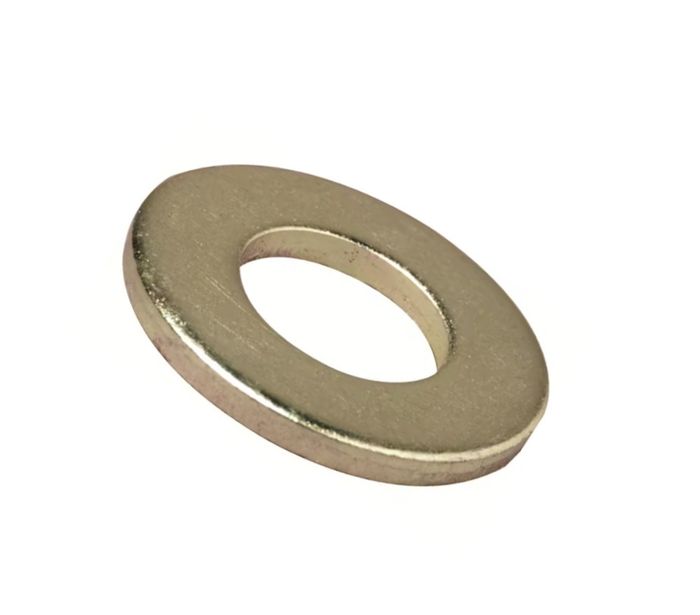

Flat Round Washer Sampson - Zinc Yellow Passivate 1-1/4 (Box=10)

(Price per unit)

Flat washers are used to increase the bearing surface beneath a nut or bolt head, distributing the clamping force over a larger area.

They are particularly useful when fastening soft materials or components with oversized or irregularly shaped holes. A flat washer also provides a smooth, even surface for the nut or bolt head to bear against, helping to improve load distribution and reduce the risk of surface damage.

Flat washers are the standard washer used in most bolted connections and are typically installed beneath the nut, the bolt head, or both.

To ensure optimum strength, corrosion resistance, and long-term performance, flat washers should be selected from a material compatible with the bolt and nut. For example, use stainless steel washers with stainless steel fasteners, and ZYP washers with ZYP fasteners.

Product

FLAT ROUND SAMPSON WASHER


Finish

ZINC YELLOW PASSIVATE

Product is electroplated with zinc which is then passivated with a iridescent yellow conversion layer.
ZYP products have a greater resistance to corrosion than Z/P and are recommended for low-corrosion environments or temporary fixing. For outdoor use, specify hot-dip galvanised.

Size
1-1/4

Specification / Reference
ASTM F436 / 38-45HRC

Product Guides & Technical Resources


Hobson washers product guide

Types of washers

Washer selection guide

Washer gauge conversion chart

Hobson product finish comparison

Hobson flat round washer zinc yellow passivate

Details

  • Brand:
    Hobson
  • Metric/Imperial:
    Imperial
  • Type:
    Each
