Spring Washer SQ - ZYP - M10x16.0x2.5 (Box=200)

HEC 7980 / SPRING STEEL - M10
Stock Code:
WRMSYSQM10025
$0.08 incl GST

Stock Locations

  • Ballarat:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

Spring Washer Square - Zinc Yellow Passivate - M10x16.0x2.5 (Box=200)

(Price per unit)

Spring lock washers are flat washers that are cut and twisted into a slight spiral or corkscrew like shape.
  • When tightened, the washer flattens under load
  • If the bolt begins to loosen, the cut ends dig into both the bolt head and the contact surface
  • This biting action helps resist further rotation and loosening
  • They are widely used due to their simplicity and low cost
  • One of the most common and inexpensive types of locking washer.

Also identified as Spring, Split Lock, Grover, Single-Coil Spring Washers

Washers must be selected to match a compatible bolt , nut grade and material system to ensure proper strength and performance.

Product

Spring Washer Square Section

Finish
ZINC YELLOW PASSIVATE

Product is electroplated with zinc which is then passivated with a iridescent yellow conversion layer.
ZYP products have a greater resistance to corrosion than Z/P and are recommended for low-corrosion environments or temporary fixing. (See guide below)

Size
M10

Specification / Reference
HEC 7980 / SPRING STEEL

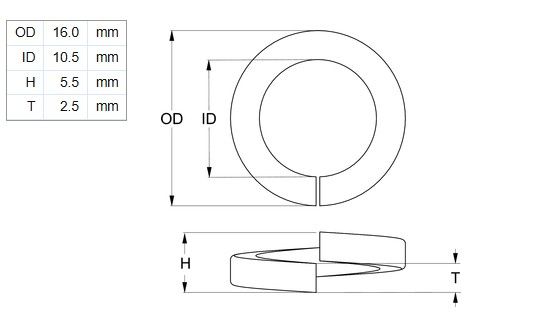

Length / Dimension
x16.0x2.5

Product Guides & Technical Resources


Hobson washers product guide

Types of washers

Washers selection guide / instructions

Washer gauge conversion chart

Product finish comparison guide

Details

  • Brand:
    Hobson
  • Metric/Imperial:
    Metric
  • Type:
