Flat Rnd Washer - 316 SS - M16x28x2.5 (Box=100)

DIN 433 / A4 - M16
Stock Code:
WR16P4M16
$0.65 incl GST

Stock Locations

  • Ballarat:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

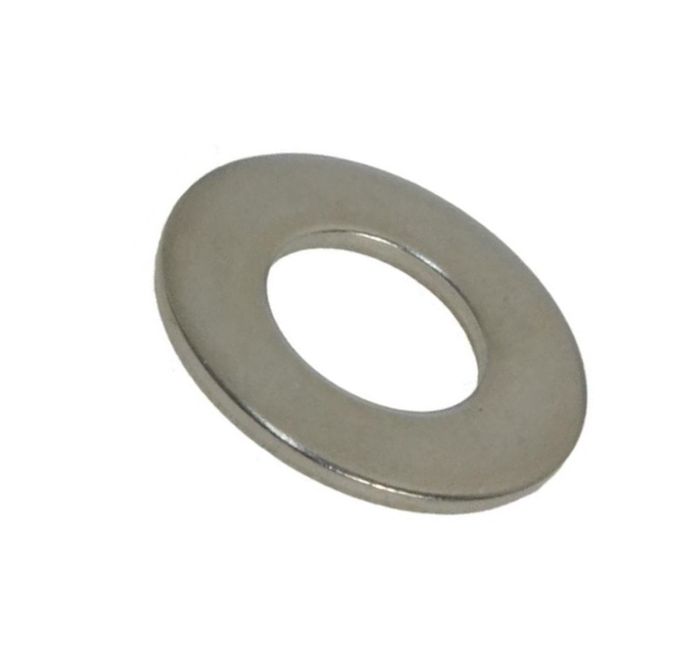

Flat Round Washer - 316 Stainless Steel - M16x28x2.5 (Box=100)

(Price per unit)

Flat washers are used to increase the bearing surface beneath a nut or bolt head, distributing the clamping force over a larger area.

They are particularly useful when fastening soft materials or components with oversized or irregularly shaped holes. A flat washer also provides a smooth, even surface for the nut or bolt head to bear against, helping to improve load distribution and reduce the risk of surface damage.

Flat washers are the standard washer used in most bolted connections and are typically installed beneath the nut, the bolt head, or both.

To ensure optimum strength, corrosion resistance, and long-term performance, flat washers should be selected from a material compatible with the bolt and nut. For example, use stainless steel washers with stainless steel fasteners, and galvanised washers with galvanised fasteners.

Further information in the guides below

Product
FLAT ROUND WASHER

Finish
316 STAINLESS

Marine Grade Stainless Steel A4-70 (316) offers excellent corrosion resistance for demanding environments. Ideal for marine, coastal, chemical, and food-processing applications where long-lasting performance is required.

Size
M16

Specification / Reference
DIN 433 / A4

Length / Dimension

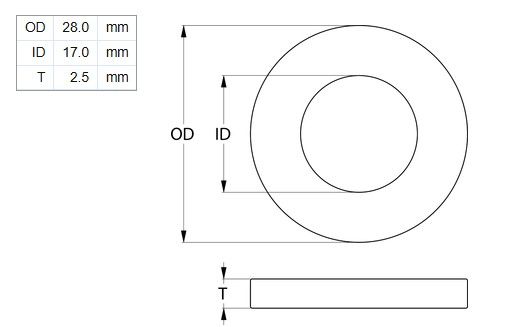

x28x2.5


Click here for hobson washers product guide

Click here for types of washers

Click here for washer selection guide

Click here for washer gauge conversion chart

Click here for common misconceptions about stainless steel


Details

  • Brand:
    Hobson
  • Metric/Imperial:
    Metric
  • Type:
    Each
