Mudguard Washer - 316 SS - M12x44.5x6.0 (Box=100)

HEC / A4 - M12
Stock Code:
WX16PLM12
$8.54 incl GST

Stock Locations

  • Ballarat:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

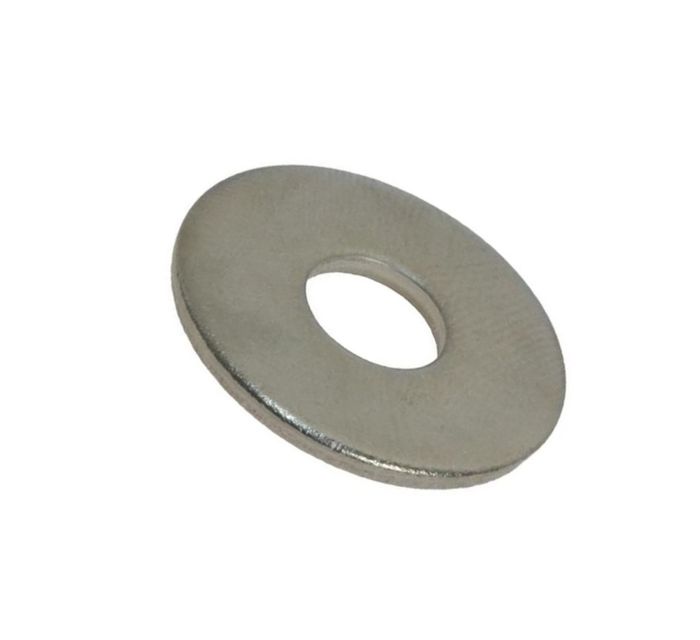

Mudguard Washer - 316 Stainless Steel - M12x44.5x6.0 (Box=100)

(Price per unit)

Mudguard Washers offer an extra-wide bearing surface that is useful when working with oversized or irregularly shaped holes.
  • Can be used when fastening soft materials that could benefit from increased support.
  • Also known as Penny washers and fender washers.

The outside diameter is approximately three times the bolt diameter, making it significantly larger than a standard flat washer for the same bolt size.

This increased size helps distribute the load more effectively and reduces the risk of pull-through in softer or thinner materials.

It is suitable for use in applications such as:

  • Marine bollards / cleats
  • Automotive and industrial body panels
  • Signage installation
  • Sheet metal cladding
  • Timber framing
  • General repairs where standard washers may fail, be insufficent or pull through materials

Note: For galvanic compatibility always pair the washer material to the bolt & nut: stainless bolt & nut to stainless washer, galvanised bolt & nut to galvanised washer.

Mixing materials can create corrosion & less durability in damp, wet environments.

Product
MUDGUARD WASHER

Finish
316 STAINLESS

Marine Grade Stainless Steel A4-70 G316 is the ultimate corrosion resistance fastener. Designed to be used in all conditions. It is the best material to use in marine, coastal, chemical and food environments

Size
M12

Specification / Reference
DIN 9021 / A4

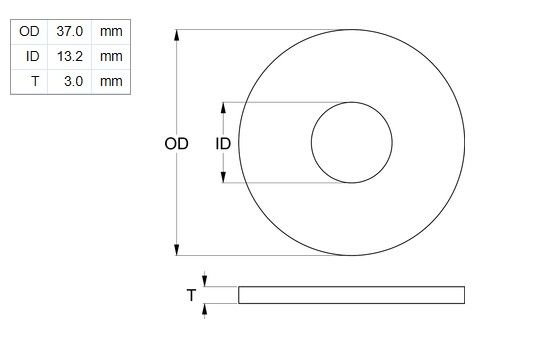

Length / Dimension
x37x3.0


Click here for hobson washers product guide

Click here for types of washers

Click here for washer gauge conversion chart

Click here for washer selection guide

Click here for misconceptions about stainless steel

Details

  • Brand:
    Hobson
  • Metric/Imperial:
    Metric
  • Type:
    Each
