Belleville Washer 304 SS M8x16.0x0.9 (Box=100)

HEC 2093A / A2 - M8
Stock Code:
WR04BM08
$0.36 incl GST

Stock Locations

  • Ballarat:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

Belleville Washer 304 Stainless Steel M8x16.0x0.9 (Box=100)

(Price per unit)

Belleville washers are a type of cylindrical washer with a conical shape. They function as compression springs and can be used individually or stacked in various arrangements.

Stacking multiple Belleville washers changes the spring rate and allows them to handle higher loads while absorbing vibrations.

They are commonly used to solve issues related to vibration, thermal expansion, and relaxation by maintaining tension within a connection.

(Further information in the guides below)

Also known as:

  • Coned-disc spring
  • Conical spring washer
  • Disc spring
  • Belleville spring
  • Cupped spring washer

Applications (may include):

  • Gun recoil mechanisms
  • Pipe flanges
  • Small machine tools
  • Applications where differential expansion may cause bolt relaxation

Limitations

  • They should not be used as a substitute for proper bolt tightening.
  • Incorrect orientation or stacking can produce the wrong spring characteristics.
  • They can fatigue if repeatedly loaded beyond their design limits.
  • They require appropriate sizing and material selection for the application.

To ensure optimum strength, corrosion resistance, and long-term performance, Belleville washers should be selected from a material that is compatible with the bolt and nut materials.

Product
BELLEVILLE WASHER

Finish
304 STAINLESS

Stainless Steel A2-70 G304 is the most popular grade of stainless steel. It is very practical because of its excellent corrosion protection in most environments

Size
M8

Specification / Reference
HEC 2093A / A2

Length / Dimension

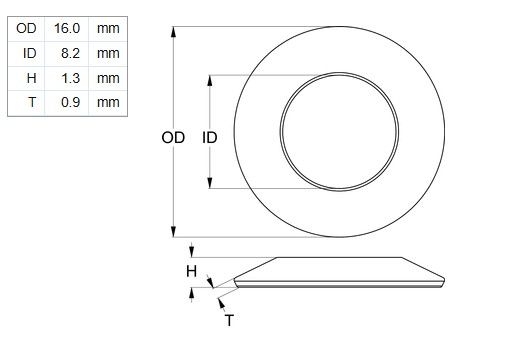

x16.0x0.9


Click here for hobson washers product guide

Click here for types of washers

Click here for hobson belleville washer

Click here for washer selection guide

Click here for washer gauge conversion chart

Click here for common misconceptions about stainless steel
