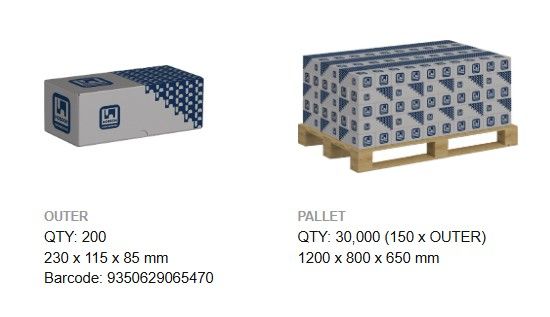

Skid Plate Cup Washer 304 SS M6 x38x1.4 (Box=200)

HEC / A2 - M6
Stock Code:
WR04KM06
$3.33 incl GST

Stock Locations

  • Ballarat:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

Skid Plate Cup Washer 304 Stainless Steel M6 x38x1.4 (Box=200)

(Price per unit)

A skid plate cup washer is a type of washer used when installing a skid plate (a protective or 'armour' metal plate under an all terrain vehicle that shields the engine, transmission, fuel tank, control arms, drive shaft or other components from rocks and impacts.

The cup washer is a dished/concave washer that sits between the bolt head (or nut) and the skid plate. It helps by:

  • Spreading the clamping load over a larger area of the skid plate
  • Preventing the bolt head from pulling through thin or softer skid plate material
  • Adding stiffness around the mounting hole
  • Helping protect the skid plate surface from deformation.

They are often used with:

  • Skid plate mounting bolts
  • High-strength fasteners (commonly metric sizes like M6, M8, M10, M12)

Features

  • For use with 0.16" (4.00mm) and thicker skid plates
  • Skid plates washers are made out of 304 Stainless Steel

(Refer to guides below for additional information)

Product

SKID PLATE CUP WASHER

Finish
304 STAINLESS

Stainless Steel A2-70 G304 is the most popular grade of stainless steel. It is very practical because of its excellent corrosion protection in most environments

Size
M6

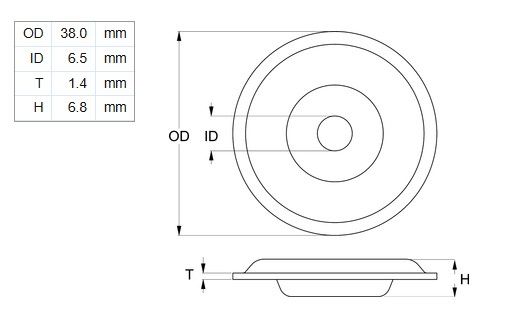

Specification / Reference
HEC / A2

Length / Dimension
x38x1.4
