Square Washer Xbolt HDG M10 xx38x3 (Box=200)

HEC / MILD STEEL - M10
Stock Code:
WSMSGX10038030
$0.73 incl GST

Stock Locations

  • Ballarat:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

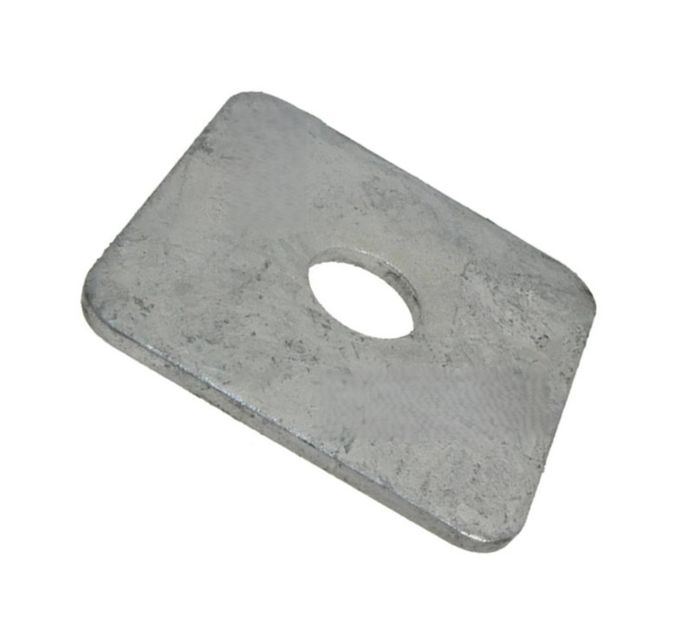

Square Washer Xbolt Hot Dipped Galvanised M10 xx38x3 (Box=200)

(Price per unit)

Heavy square washers are thick steel washers with a large square profile designed to distribute bolt clamping force over a wider area.

They are commonly used in timber and other soft materials where standard round washers may be pulled through under load.

Square Washer XBolt - Specifically suited to screw bolts as their oversized holes allow them to fit over the larger XBolt threads.

Key points:

  • Wide square surface helps spread load and reduce pull-through in softer materials
  • Commonly used in timber construction such as deck framing, retaining walls, and general softwood structures
  • Square design helps prevent the washer from rotating within the material
  • Typically galvanised is used for outdoor and treated timber applications
  • Available in a variety of finishes for different corrosion resistance needs

Note: For galvanic compatibility always pair the washer material to the bolt & nut: stainless bolt & nut to stainless washer, galvanised bolt & nut to galvanised washer.

Mixing materials can create corrosion & less durability in damp, wet environments.

Further information in the guides below

Product
XBOLT SQUARE WASHER

Finish
HOT DIP GALVANISED

Galvanised is a dull greyish colour and is slightly rough in appearance. It is mainly used outdoors due to its superior corrosion resistance and longevity in rugged environments. Often known as HDG, it provides strong protection against rust.

Size
M10

Specification / Reference
HEC / MILD STEEL

Length / Dimension
x38x3


Click here for hobson washers product guide

Click here for product finish comparison

Click here for types of washers

Click here for washer gauge conversion chart

Click here for hobson grey galvanising

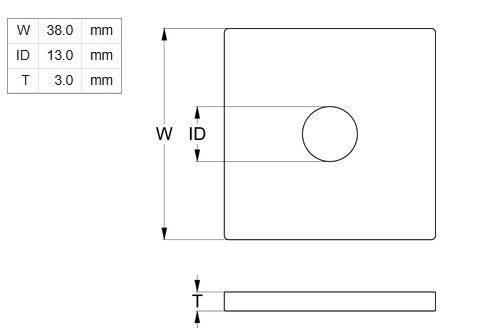

Details

  • Bore Size:
    10.5 mm (nom 10 mm)
  • Material:
    Steel - Galvanised
  • Width:
    3 mm
  • Brand:
    Hobson
  • Metric/Imperial:
    Metric
  • Type:
    Each
  • Diameter Outside:
    38 mm
  • Style:
    Mild Steel
