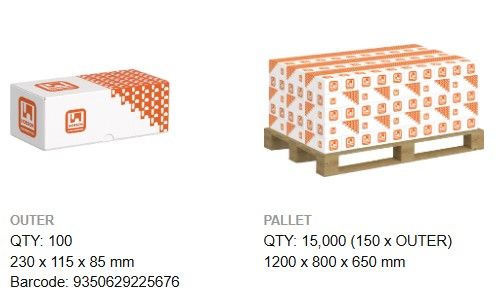

Mudguard Washer Hardened - ZFS - M16 (Box=100)

ISO 7093 / 300 HV - M16
Stock Code:
WRV3FMM16
$4.71 incl GST

Stock Locations

  • Ballarat:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

Mudguard Washer Hardened -Zinc Flake Silver- M16 (Box=100)

(Price per unit)

Mudguard Washers offer an extra-wide bearing surface that is useful when working with oversized or irregularly shaped holes.
  • Can be used when fastening soft materials that could benefit from increased support.
  • Also known as Penny washers and fender washers.
  • Hardened washer suitable for up to class 10.9

The outside diameter is approximately three times the bolt diameter, making it significantly larger than a standard flat washer for the same bolt size.

This increased size helps distribute the load more effectively and reduces the risk of pull-through in softer or thinner materials.

It is suitable for use in applications such as:

  • Marine bollards / cleats
  • Automotive and industrial body panels
  • Signage installation
  • Sheet metal cladding
  • Timber framing
  • General repairs where standard washers may fail, be insufficent or pull through materials

Note: For galvanic compatibility always pair the washer material to the bolt & nut: stainless bolt & nut to stainless washer, galvanised bolt & nut to galvanised washer.

Mixing materials can create corrosion & less durability in damp, wet environments.

Refer to guides below for further information

Product
MUDGUARD WASHER

Finish
ZINC FLAKE SILVER >1000HRS

ZFS provides high corrosion resistance without introducing any risk of hydrogen embrittelment. Thin coating thickness allows external thread to be matted with standard internal thread (no over-tapping)

Size
M16

Specification / Reference
ISO 7093 / 300 HV


Click here for hobson washers product guide

Click here for mudguard washers

Click here for types of washers

Click here for hobson product finish comparison

Click here for washer gauge conversion chart

Click here for washer selection guide

Click here for hobson zinc flake coating

Click here for hobson prevent zinc whiskers

Details

  • Brand:
    Hobson
  • Metric/Imperial:
    Metric
  • Type:
    Each
