K0 Taper Washer 8 Deg Sq M2038.1038.10 (Box=100)

AS1252:2016 / 33-41HRC - M20

Stock Code:

WTK0PM20

$4.35 incl GST

Stock Locations

Ballarat:

Special Order

Make an Enquiry

Add to Favourites

Description

DESCRIPTION

K0 Taper Washer 8 Deg Square M2038.1038.10 (Box=100)

(Price per unit)

Designed for use with the K0 Structural Bolt and Nut assembly system

Taper 8 Washers are designed for use with structural beams and channels where they compensate for a lack of parallelism between mating surfaces. They provide a secure and effective fit in structural bolting applications.

Taper Washers used with AS 1252 Structural Assemblies are manufactured from medium carbon steel and are heat treated and hardened to achieve a hardness range of 31–41 HRC, ensuring reliable performance in demanding structural applications.

Examples

Roof trusses,
Portal frame connections
Steel bridges
Industrial platforms
Structural frames where channels are bolted to beams.

Important: Use only approved K0 components

For compliant K0 connections, always use the correctly matched K0 bolt, K0 nut, and K0 washer. Do not use a K0 washer with a standard hex bolt or replace it with an alternative washer, as this may compromise the integrity of the connection and void AS 1252:2016 certification.

Product

TAPER WASHER - 8 Deg SQUARE

Finish

PLAIN

Black or plain finish is unfinished (bare steel) has no actual protective coating. There may be an oil residue which provides some shelf life but no real corrosion protection when in use. Depending on the material grade and heat treatment process the colour can vary from a shiny oily finish to a dull black

Size

M20

Specification / Reference

AS1252:2016 / 33-41HRC

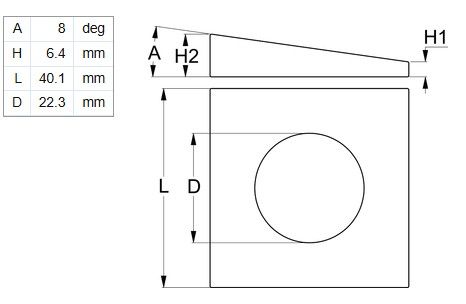

Length / Dimension

38.10 x 38.10
