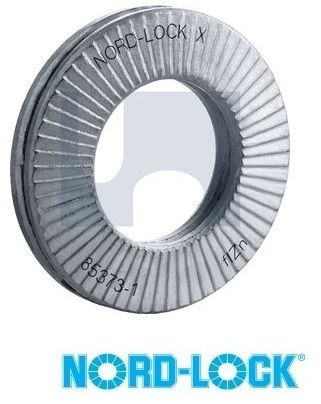

X Series Large OD Washer Dlta Prtkt M12x25.4x4.20

NORD-LOCK - M12 (Box=100)
Stock Code:
WNXTLDM12
$14.26 incl GST

Stock Locations

  • Ballarat:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

X Series Large OD Washer Dlta Prtkt M12x25.4x4.20

(Price per unit)

Nord-Lock is the Swedish inventor / manufacturer of the wedge-locking fastener security system.

Nord-Lock® X-series washers are the premium choice for intense applications and harsh conditions that need enhanced security.

Nord-Lock® X-series washers combine the proven wedge-locking technology of the original Nord-Lock washers with a specially designed conical shape. This disc-like form maintains tension
by compressing and springing when required. An X-series is comprised of two washers, each with cams and serrations. The cam angle is greater than the thread pitch, resulting in a wedge effect when tightened that securely locks the washers together.

Features

  • Prevents loosening under severe vibration
  • Delivers compensation against relaxation and settlement
  • High resistance to corrosion and thermal cycling
  • Suitable for use in joints with short clamp lengths
  • Reusable depending on application

Applications

  • Reliable locking of bolted joints
  • Rails and trains
  • Wind farms — turbines
  • Motors
Product
X SERIES OD WASHER

Finish
DELTA PROTEKT

Delta Protekt is a zinc-flake coating used on Nord-Lock fasteners to protect them from corrosion and provide a durable, low-friction surface for reliable bolted connections without compromising bolting performance. (Refer to guides below)

Size
M12

Specification / Reference
NORD-LOCK

Length / Dimension
x25.4x3.5
