Disc Spring - 304 SS - 10x5.2x0.25 (Box=100)

Schnorr DIN EN 16983 - 10

Stock Code:

WO04DP010010

$2.59 incl GST

Stock Locations

Ballarat:

Special Order

Make an Enquiry

Add to Favourites

Description

DESCRIPTION

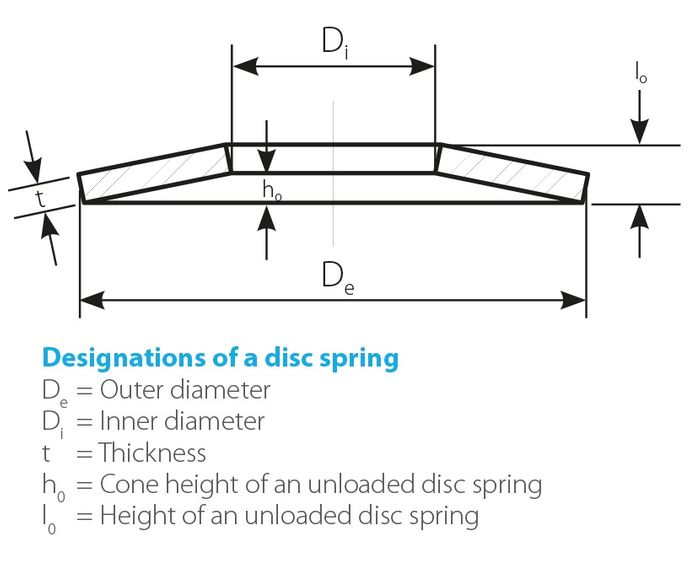

Disc Spring - 304 Stainless Steel - 10 mm x 5.2 x 0.25 (Box=100)

(Price per unit)

Managing maximum force using minimum space.

Disc springs support a lot of dynamic processes in a skillful, safe and efficient way – often under extreme force and load conditions.

Original SCHNORR® disc springs excel by:

An optionally linear, degressive or progressive course of the load deflection curve.
Long service life with dynamic load.
Use of high quality materials.
Precise adherence to force and dimension requirements.

Typical applications can include

Precision drilling machines.
Overload limitation
Machine tools
Spindles
Actuators
Control valves
Pipelines subject to pressure
Pressure relief valves

Disc springs must be selected to match a compatible material system to ensure proper strength and performance. ie stainless steel with stainless steel, zinc plate with zinc plate

(Refer to attached documentation)

Product

DISC SPRING

Finish

304 STAINLESS

Stainless Steel A2-70 G304 is the most popular grade of stainless steel. It is very practical because of its excellent corrosion protection in most environments.

Size

Specification / Reference

DIN EN 16983

Length / Dimension

x5.2x0.25
