Serr VS Safety Washer - ZP - M22x33.0x1.9(Box=20)

Schnorr SERRATED - M22
Stock Code:
WOHTVZM22
$4.32 incl GST

Stock Locations

  • Ballarat:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

Serrated VS Safety Washer - Zinc Plate - M22x33.0x1.9(Box=20)

(Price per unit)

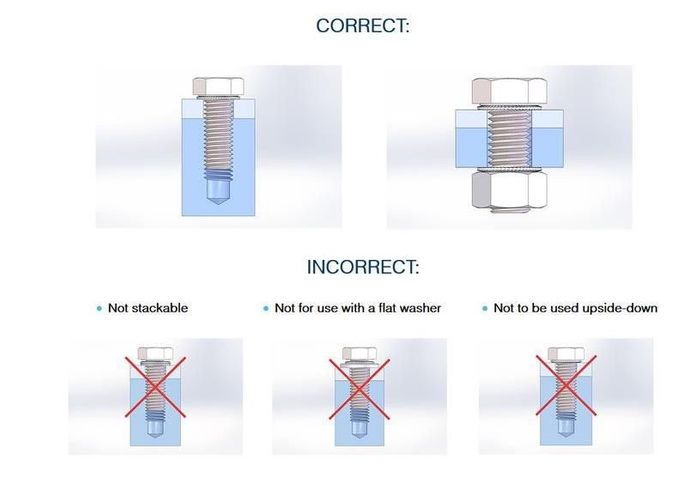

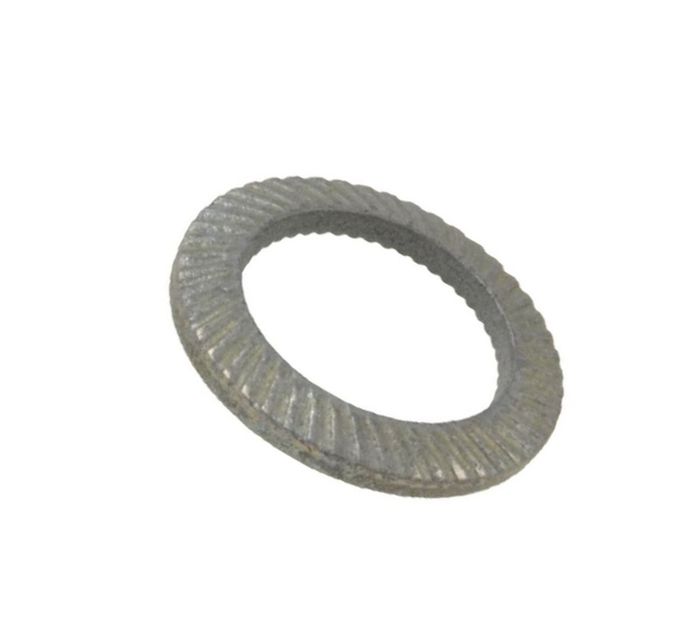

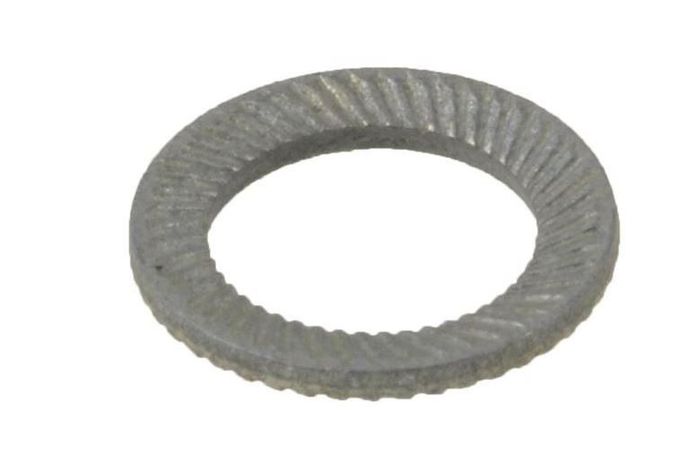

Original SCHNORR® Safety Washers are in the form of a disc spring but with a trapezoidal cross-section and serrations on both sides. The outer diameter is matched to the head diameter of the pan head and socket head cap screws.

For screws of property classes 8.8 and 10.9, higher pretension forces might be necessary. These are covered by our reinforced washers type “VS”.

Due to the conical form, optimal traction is achieved at highest positive locking due to the helical gearing

Advantages

  • High resistance to vibration due to positive locking of the serrations
  • Concentrical force transmission and uniform axial load eliminate bending torques and deformation of the bolt stem
  • The design of the serrations prevents friction and damage to components when tightening
  • Extremely high safety against loss of pretension force and loosening
  • Wide variety for materials and different finishes
  • The closed ring form results in high degree of pretensioning, while avoiding burst-open effect
  • Development and design of the washers take place on the basis of the screw geometrics, tightening torque as well as the constructive circumstances

Note: To ensure optimum strength, corrosion resistance, and long-term performance, washers should be selected from a material compatible with the bolt and nut. For example, use stainless washers with stainless fasteners, and galvanised washers with galvanised fasteners.

Product
TYPE VS SAFETY WASHER

Finish
ZINC PLATED (RoHS Compliant)

Zinc Plated is the most common fastener of plating due to its the low cost and shinny bright silver finish. A thin layer of zinc is applied by either electroplating or mechanically. It is intended to be used internally. External use is not recommended if corrosion is a concern. Choose from the galvanised or stainless steel range for external use.

Size
M22

Specification / Reference
SERRATED

Length / Dimension
x33.0x1.9

Product Guides & Technical Resources


Hobson schnorr product guide

Schnorr safety washers - brochure

Types of washers

Washer gauge conversion chart

Schnorr comparative vibration junker test paper

Schnorr safety washer advantages

Schnorr safety washers type VS material C60S

Schnorr safety washer - tightening torques

Anti-vibration paper

Product finish comparison
