Neptune Spring Washer 316SS M4 (Box=200)

HEC 7980 / A4 -80 - M4
Stock Code:
WR16NSM04
$0.03 incl GST

Stock Locations

  • Ballarat:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

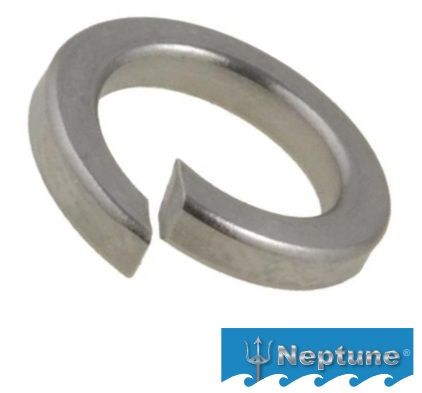

Neptune Spring Washer 316 Stainless Steel M4 (Box=200)

(Price per unit)

For use with Neptune Bolts & Nuts

Spring lock washers are flat washers that are cut and twisted into a slight spiral or corkscrew like shape.
  • When tightened, the washer flattens under load
  • If the bolt begins to loosen, the cut ends dig into both the bolt head and the contact surface
  • This biting action helps resist further rotation and loosening
  • They are widely used due to their simplicity and low cost
  • One of the most common and inexpensive types of locking washer.

Also identified as Spring, Split Lock, Grover, Single-Coil Spring Washers

Neptune Spring Washers

Neptune spring washers have superior hardness to standard spring washers to accommodate the higher tensile loads achieved in a Neptune assembly.

Note

Washers must be selected to match a compatible bolt , nut grade and material system to ensure proper strength and performance.

Product
NEPTUNE SPRING WASHER

Finish
316 STAINLESS

Marine Grade Stainless Steel A4-70 (316) offers excellent corrosion resistance for demanding environments. Ideal for marine, coastal, chemical, and food-processing applications where long-lasting performance is required.

Size
M4

Specification / Reference
HEC 7980 / A4 -80

Product Guides & Technical Resources


Hobson neptune product guide

Hobson neptune spring washer 316 stainless steel

Breaking strength guide

Types of washers

Washers selection guide

Washer gauge conversion chart

Product finish comparison

Hobson common misconceptions about stainless steel

Details

  • Brand:
    Hobson
  • Metric/Imperial:
    Metric
  • Type:
    Each
