Bushing Washer - NYLN - M10x40 (Box=50)

WITH SHOULDER - M10

Stock Code:

WB66PSM10040

$3.16 incl GST

DESCRIPTION

Bushing Washer - Nylon - M10x40 (Box=50)

(Price per unit)

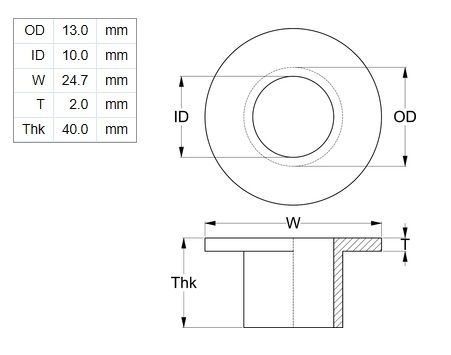

Shoulder washers (insulating bushing washers) are nylon (non conductive) insulating components designed with a stepped profile and extended collar.

The collar passes through the mounting hole, creating separation between the fastener and the surrounding material.

Also utilised for general load spreading fastening.

Key Features:

Manufactured from durable natural nylon.
Stepped design with an integrated shoulder for insulation.
Prevents direct contact between the bolt shank and the host material.
Reduces the risk of galvanic corrosion caused by contact between dissimilar metals in moist environments.
Provides electrical, thermal, and chemical isolation.

Common Applications:

Marine and coastal installations exposed to saltwater.
Outdoor equipment and structural assemblies.
Automotive trim and body fittings.
Electrical and PCB mounting applications where metal fasteners must be isolated from conductive surfaces such as copper.
Mixed-metal assemblies involving combinations such as:
- Stainless steel fasteners and aluminium components.
- Steel fasteners and brass components.
- Other dissimilar metal joints exposed to weather, humidity, or condensation.

These washers are an effective solution wherever insulation, corrosion prevention, and material separation are required.

Refer to product guide links below

Product

WASHER-BUSHING

Finish

NYLON NATURAL

Size

M10

Specification / Reference

WITH SHOULDER

Length / Dimension
