Food Line

Conversion Chart

SPA Section Wedge Belt Optibelt

SPA1082 / 1082mm Inside / 1104mm Outside
Stock Code:
SPA1082_OPTI
$32.52 incl GST

Stock Locations

  • Ballarat:
    2 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

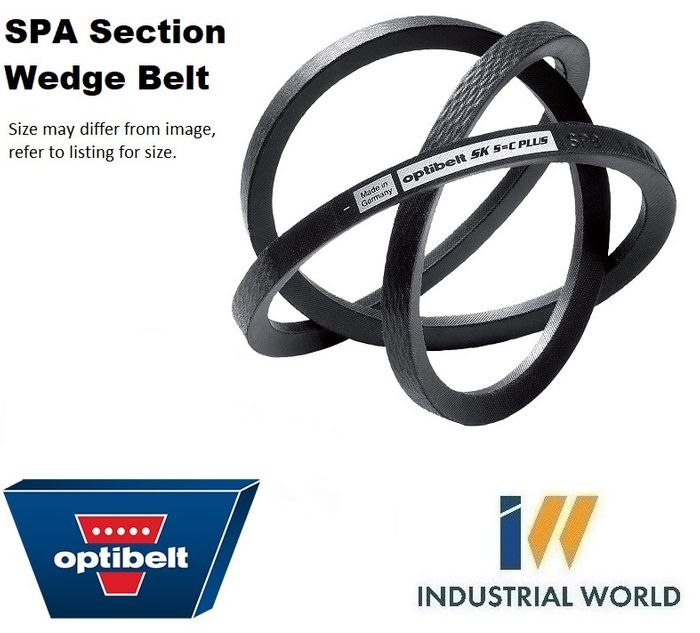

SPA Section Wedge Belt Optibelt

SPA1082 1082mm Datum / 1104mm Outside

The wrapped optibelt SK wedge belt was developed especially for mechanical engineering, where it replaces its predecessor, the classic V-belt. In comparison, it transmits approximately 50 % more power and thus enables more compact and therefore more cost-effective drives when purchasing new ones

  • The wrapped wedge section V-belt used on agricultural and industrial applications
  • Standard v belts are manufactured from a specially formulated rubber and reinforced high strength polyester cords for uniformity and strength

Construction

  • Wedged cross-section
  • Fibre-loaded compound for improved belt stability
  • Sides provide full contact with pulley grooves for uniform loading of cords, uniform wear and increased belt life
  • Polyester cords for equal load distribution and reduced stress.
  • Cover is a fabric construction for longer life, providing extended protection to the belt core from oil, dirt and heat
  • Non self-igniting - the belt will not catch fire from heat build-up, even with severe slippage

Advantages

  • Premium performance
  • Oil and heat resistant
  • Excellent performance/cost ratio
  • Suitable for dirty/dusty environments
  • Tolerates mild clutching or drive slip

Temperature Range

  • Range: -40°C to +70°C

Please Note - The size of the belt should always be checked with original before purchasing. This is because sometimes different belts are used within the same model/engine variation when there is more than one type of alternator / air compressor / power steering pump / etc. used.

Downloads below

Click here for Optibelt datasheet SK SPA

Click here for Optibelt technical manual V-Belt Drives

Click here for wedge vee belts chart

We stock all styles of Vee Belts including: A, B, C, D, M, SPA, SPB, SPC, SPD, SPZ and many more, send us an enquiry if you cannot find what you are looking for online:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Brand:
    OPTI
  • Number of Rows:
    1
  • Size:
    1082
  • Belt Type:
    SPA (13 mm)
  • Style:
    Standard
