Loctite - 518 Gasket Maker Aluminium 300ml

LOCTITE 518 300ML
Stock Code:
2096061_LOCTITE
$197.16 incl GST
Minimum Order Quantity: 10

Stock Locations

  • Ballarat:
    Special Order

Must be ordered in multiples of 10

Make an Enquiry
Add to Favourites

Description

DESCRIPTION

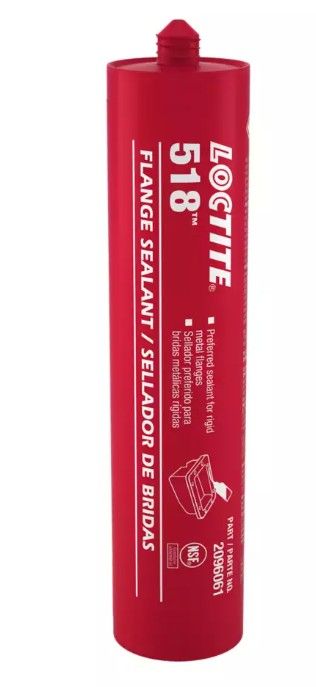

Loctite - 518 Gasket Maker Aluminium 300 ml

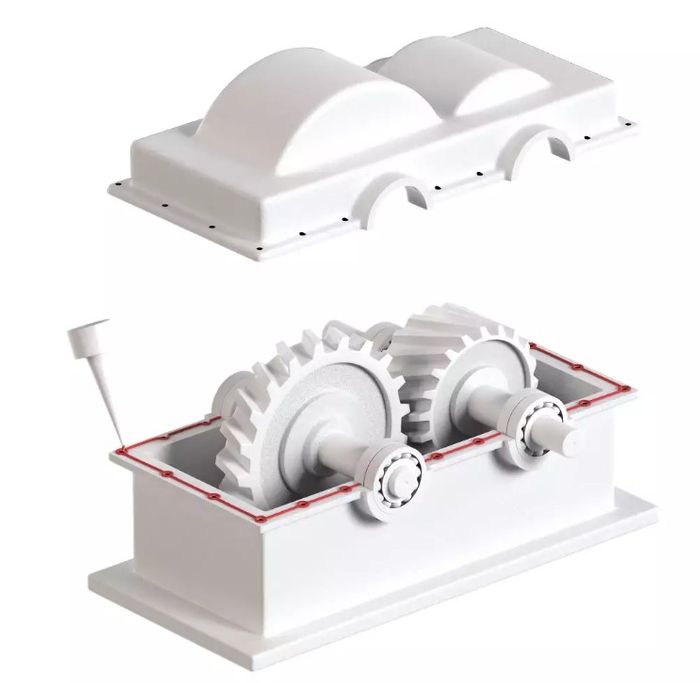

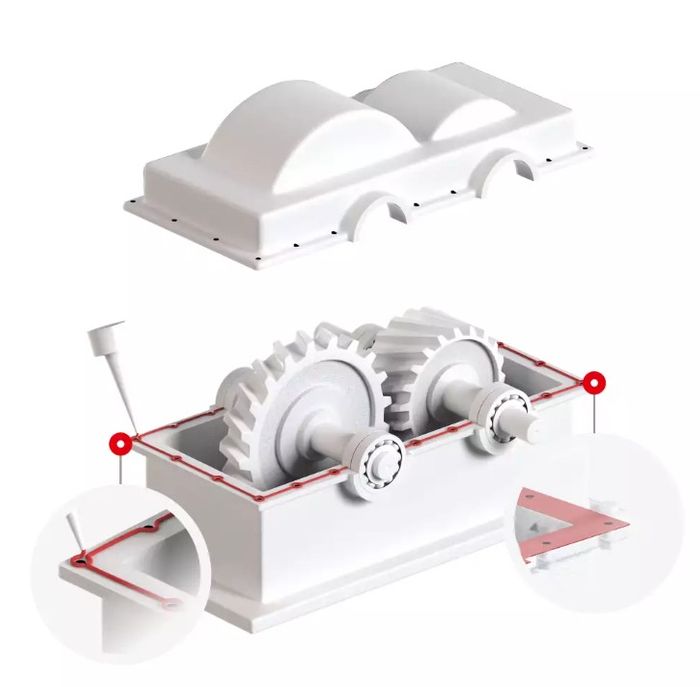

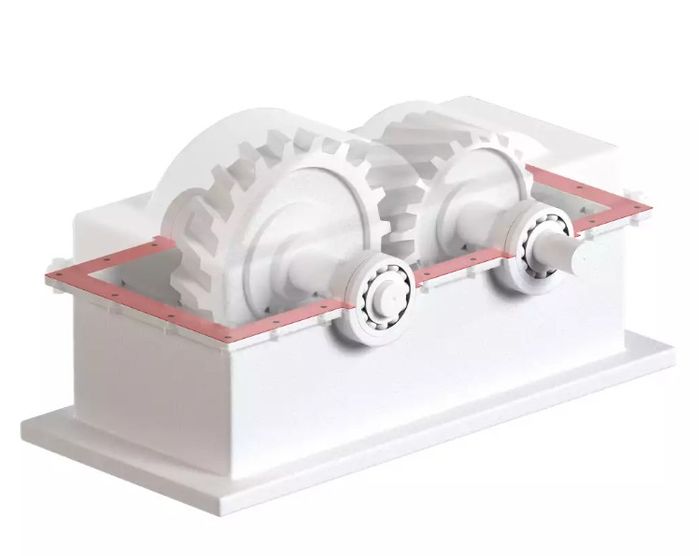

LOCTITE® 518 is a general purpose, primerless, semi-flexible, form-in-place anaerobic flange sealant. It cures – even in the presence of minor surface contaminants – to seal close-fitting joints between rigid metal flanges, and will flex with minor flange movements. It provides resistance to low pressures immediately after assembly of flanges, and is ideal for use on aluminium substrates where you need very good flexibility. Typically used as a form-in-place gasket for pumps, thermostats, compressors, transmission housings and axle covers, it not only works on active metals (e.g. mild steel) but also on passive substrates, such as aluminium with a low copper content. You can expect gap performance to 0.25 mm (0.01").

Features and Benefits

  • Semi-flexible, medium-strength anaerobic flange gasket
  • For active and inactive rigid metal flanges
  • Cures through minor surface contamination
  • Adapts to flange surface irregularities and gaps up to 0.25 mm
  • Seals instantly against low pressure
  • Resists high pressure when fully cured
  • Gel-type consistency
  • Reduces process costs – eliminates manual assembly of conventional gaskets
  • NSF P1 Reg. No. 123758

Technical Information

  • Application method - Dispense System, Manual
  • Applications: Rigid Assembly Gasketing, Sealing
  • Chemical basis / base Dimethacrylate Ester
  • Colour, Red
  • Cure type: Anaerobic Cure
  • Fixture time, 25.0 min.
  • Gap fill 0.25 mm
  • Key characteristics - Fluorescent, For machined, rigid flanges, Immediate Low Pressure Sealing, Strength: Medium Strength, Surface Contamination-Tolerant, Thixotropic
  • Operating temperature: -55.0 - 150.0 °C (-65.0 - 300.0 °F )
  • Physical form, Gel
  • Recommended for use with, Aluminium, Metal: Iron - Cast Iron, Metal: Passive Metal, Metal: Steel
  • Specific gravity, @ 25.0 °C 1.1
  • Storage temperature: 8.0 - 21.0 °C
  • Viscosity 750000.0 mPa·s (cP)

Downloads and resources below

Loctite product guide

Technical data sheet

Safety data sheet
