Click to Enlarge

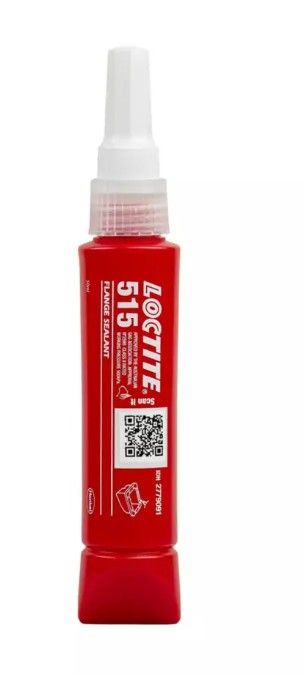

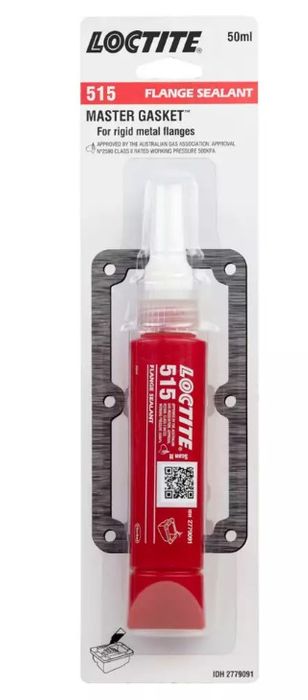

Loctite - 515 Gasket Maker Flexible 50ml

LOCTITE 515 TB50MLAU

Stock Code:

2779091_LOCTITE

$34.86 incl GST

Stock Locations

Ballarat:

60 In Stock

Make an Enquiry

Add to Favourites

Description

DESCRIPTION

LOCTITE^® 515

Larger gap-filling gasketing product for close-fitting rigid flanges

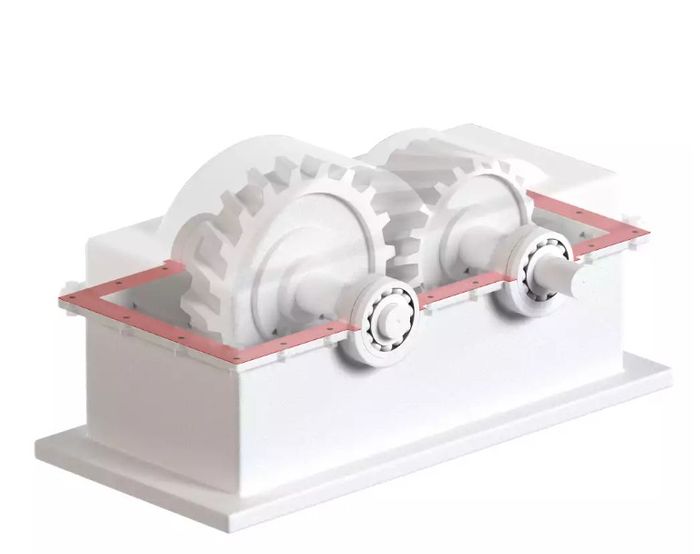

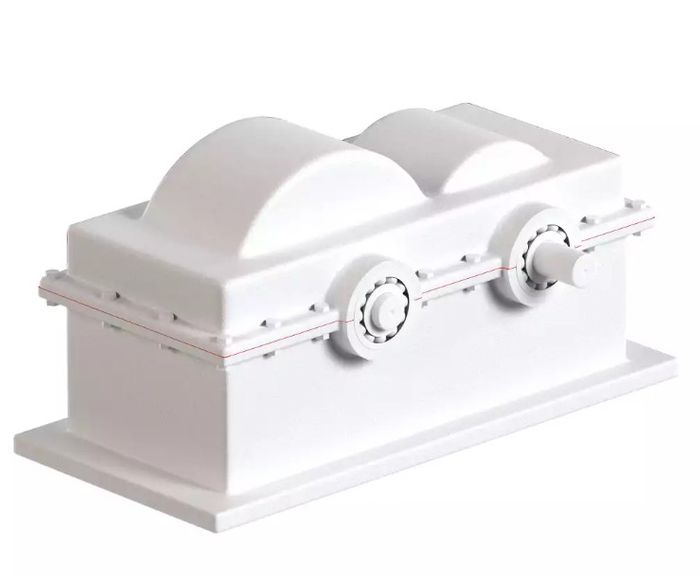

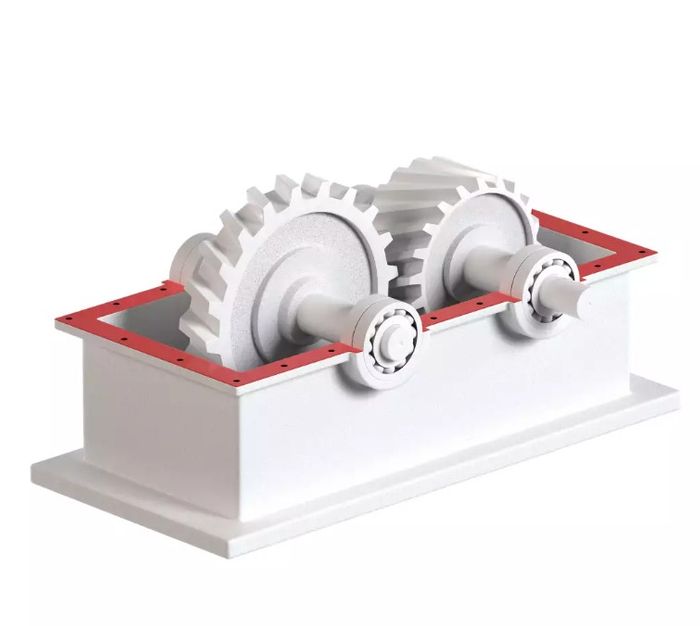

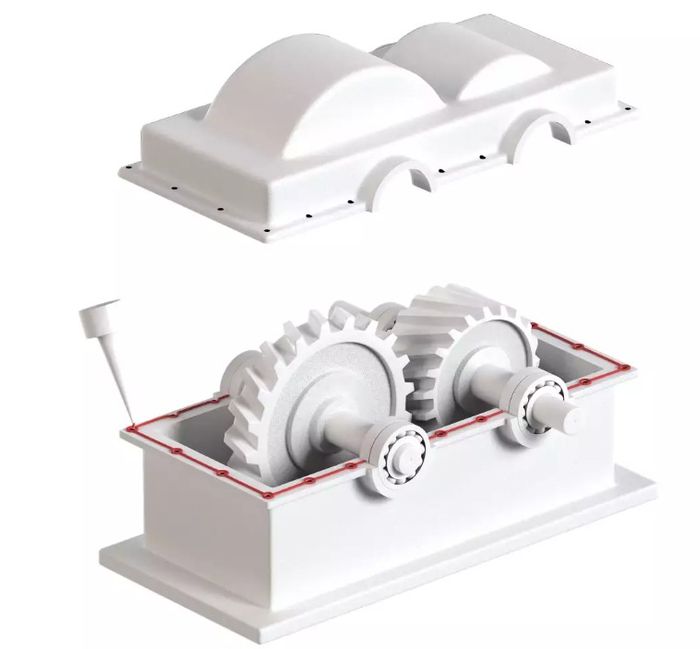

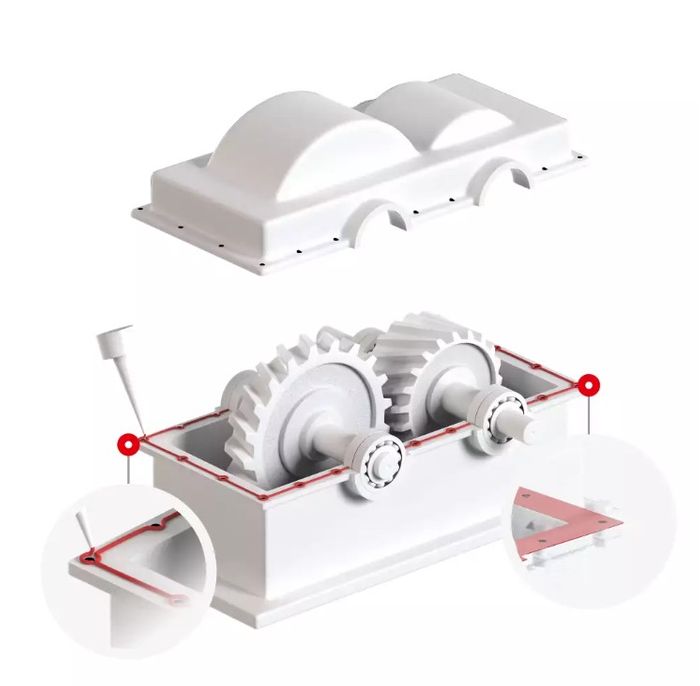

LOCTITE^® 515 is a form-in-place anaerobic-curing flange sealant that cures when confined in the absence of air between close fitting metal surfaces. It seals close-fitting joints between rigid metal faces and flanges and will flex with minor flange movements. It provides resistance to low pressures immediately after assembly of flanges and is typically used as a form-in-place gasket for pumps, thermostats, compressors, transmission housings and axle covers. The product is fluorescent under UV light, allowing visual inspection of the bead.

For machined metal components
Forms a perfect seal
Gap fill up to 0.25 mm (0.01")
Form-in-place sealant
Fluorescent under UV for quality control

Technical Specification

Product category: Gasket sealants
Technologies: Acrylates, anaerobic cure
Application method: Dispense system; Manual
Applications: Rigid assembly gasketing; Sealing
Chemical basis / base: Methacrylate
Colour: Purple
Cure type: Anaerobic cure
Fixture time: 30.0 min
Gap fill: 0.25 mm
Key characteristics: Fluorescent; For machined, rigid flanges; Strength: medium strength; Thixotropic
Lap shear strength: 6.0 N/mm²
Number of components: 1 part
Physical form: Gel
Recommended for use with: Metal: aluminium; Metal: steel
Storage temperature: 8.0 °C - 21.0 °C
Viscosity, Brookfield - HBT, @ 25.0 °C: 700000.0 mPa·s (cP) - 1700000.0 mPa·s (cP)
Viscosity, Brookfield - HBT, @ 25.0 °C: 150000.0 mPa·s (cP) - 375000.0 mPa·s (cP)
