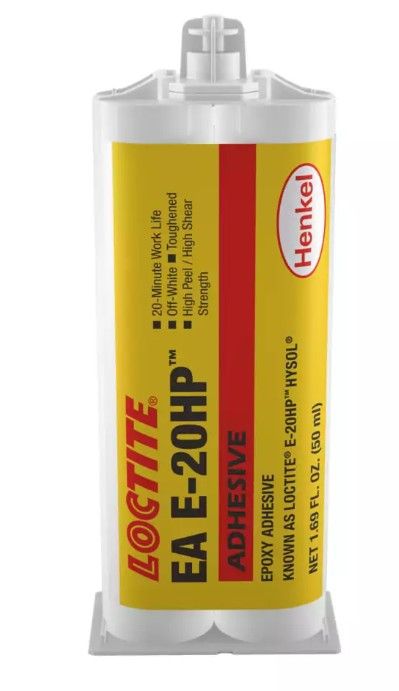

Loctite - EA E20HP Epoxy Adhesive High Perf 50ml

LOCTITE EA E-20HP 50ML (2889931)

Stock Code:

2889931_LOCTITE

$57.67 incl GST

Stock Locations

Ballarat:

19 In Stock

20 On Order

Make an Enquiry

Add to Favourites

Description

DESCRIPTION

LOCTITE^® EA E-20HP

High impact- and humidity-resistant general-purpose adhesive

LOCTITE^® EA E-20HP is a 2-part, high impact- and humidity-resistant structural bonder. Once mixed, it cures at room temperature to form a tough bond line with high peel resistance. It has a very high shear strength of 33 N/mm², is resistant to a wide range of chemicals and solvents, and withstands temperatures up to 150°C (302°F). Ideal for metal-to-metal bonding, it can also be used as a magnet bonder for surface and interior permanent magnets (SPM & IPM), and is an excellent electrical insulator. Bonds a wide variety of plastics, metals, dry concrete and architectural materials. Typical applications include marine in-line shaft generators.

High impact- and high humidity resistance

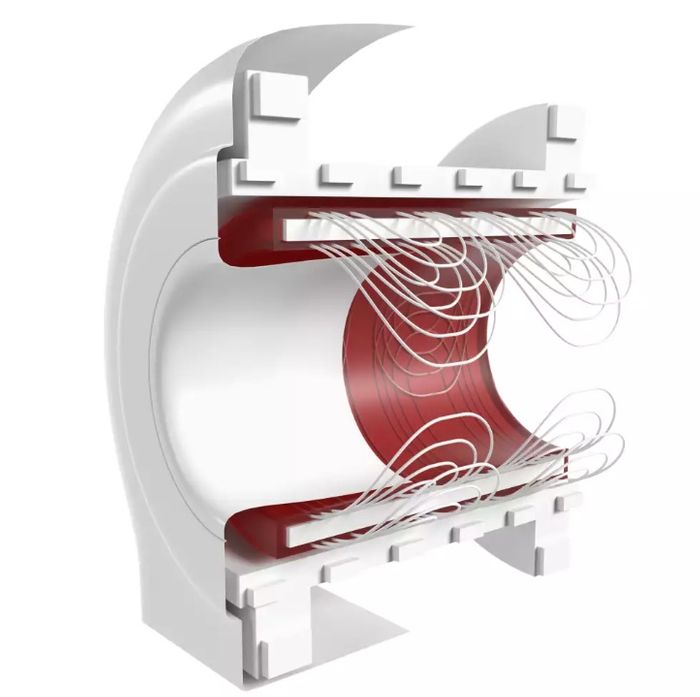

Bonds a variety of substrates including magnets
Temperature resistance up to 150°C (302°F)
Dual cure: room-temperature, heat

Technical specification

Product category: Structural adhesives
Technologies: 2C general epoxy
Application method: Dispense gun; Dispense system
Applications: Bonding metal; Bonding plastic
Cure type: Room temperature (ambient) cure; Two component mix
FEA (finite element analysis): Finite strain; Viscoelastic
Hardener: Colour: Yellow
Hardener: Specific gravity, @ 25.0 °C: 1.1
Hardener: Viscosity, @ 25.0 °C: 5500.0 mPa·s (cP) - 8000.0 mPa·s (cP)
Key characteristics: Peel strength: high peel strength; Shear strength: high shear Strength; Toughened; Viscosity: medium viscosity; Work life: medium work life
Mix ratio, by volume: 2 : 1
Mix ratio, by weight: 100 : 55
Mixed: Colour: Off white
Mixed: Specific gravity, @ 25.0 °C: 1.03
Number of components: 2 part
Physical form: Liquid
Recommended for use with: Concrete; Metal; Metal: aluminium; Metal: steel; Metal: steel - stainless steel; Plastic; Polyamide (nylon); Polycarbonate; Wood
Resin: Colour: Light yellow
Resin: Specific gravity, @ 25.0 °C: 1.0
Resin: Viscosity, @ 25.0 °C: 40000.0 mPa·s (cP) - 90000.0 mPa·s (cP)
