Loctite - 401 Instant Adhesive Med Viscosity

General Purpose 3g
Stock Code:
547691_LOCTITE
$9.41 incl GST

Stock Locations

  • Ballarat:
    13 In Stock
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

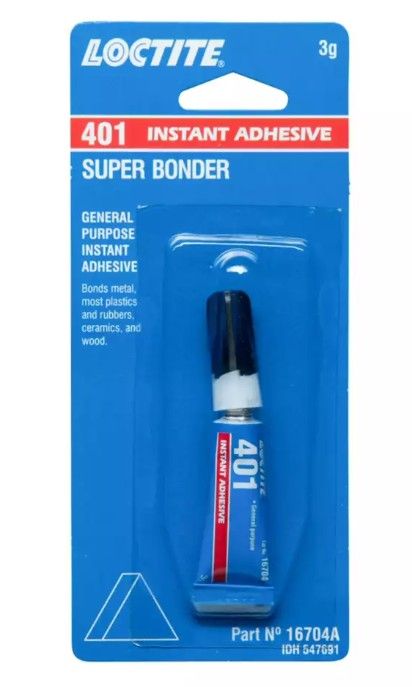

Loctite - 401 Instant Adhesive Med Viscosity 3g

Your go-to fast-fixturing adhesive

LOCTITE® 401 is a fast-fixturing instant adhesive designed for the assembly of a wide range of materials where uniform stress distribution and high tensile and/or shear strength are required. Using LOCTITE® SF 770 primer, the assembly of difficult-to-bond (PP, PE, PTFE) materials is possible. In addition, it is suited to bonding porous materials such as wood, paper, leather and fabric.

  • Universal industrial instant adhesive
  • Very high strength on close-fitting parts
  • Reduced hazardous ingredients for improved occupational safety
  • Bonds a wide range of similar or dissimilar substrates (metals, rubber, wood, cardboard, ceramics and most plastics)
  • Assembles difficult-to-bond materials using LOCTITE SF 770 primer

Technical Specifications

Product category: Instant adhesives
Technologies: Cyanoacrylate
Application method: Dispense system; Manual
Applications: Bonding close fitting parts; Repairing
Colour: Clear
Cure type: Moisture cure
Fixture time, Steel: 5.0 s
Gap fill: 0.15 mm
Key characteristics: General purpose; Strength: high strength; Viscosity: low viscosity; fixture: very fast fixture
Operating temperature: -40.0 °C - 120.0 °C (-40.0 °F - 250.0 °F)
Physical form: Liquid
Recommended for use with: Elastomer; Metal; Plastic; Porous surface

Shear strength, Mild Steel (grit blasted): 20.0 N/mm² (2900.0 psi)

Viscosity: 100.0 mPa·s (cP)

Related industries and market segments

Power

  • Wind

Industrial maintenance and repair

  • Oil and gas
  • Power generation

Industrial manufacturing

  • Electric motors
  • Fluid power
  • Fluid processing
  • Remanufacturing

How to use

1. Preparation - Cleaning
It is recommended to use the correct LOCTITE® cleaner for the surface to be bonded (such as LOCTITE® SF 7070™) to degrease and clean surfaces prior to applying the adhesive.

2. Preparation - Priming
To improve adhesion on difficult to bond plastic surfaces, apply LOCTITE® SF 770™ to the bond area by brushing or dipping. Avoid applying excess primer. Allow the primer to dry.

3. Preparation - Activation
If cure speed is too slow, use activator LOCTITE® SF 7452™ or LOCTITE® SF 7455™ (see cure speed vs activator graph in TDS). Apply activator to one bond surface by spray, brush or dipping (not primed surfaces). Allow the activator to dry.

4. Application
Apply adhesive onto one side/part.

5. Assembly
Assemble parts immediately. The parts should be accurately located as the short fixture time leaves little opportunity for adjustment. Bond should be held or clamped until the adhesive has fixtured.

Hint: if necessary, excess product can be cured by activator LOCTITE® SF 7452™. Spray or drop activator onto excess product.

Downloads and resources below

Loctite product guide

Loctite 401 technical data sheet

Loctite 401 safety data sheet
