Loctite - 222 Threadlocker Low Strength Purple

10ml
Stock Code:
471660_LOCTITE
$16.71 incl GST

Stock Locations

  • Ballarat:
    42 In Stock
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

LOCTITE® 222

Purple, low-strength threadlocker for small fasteners

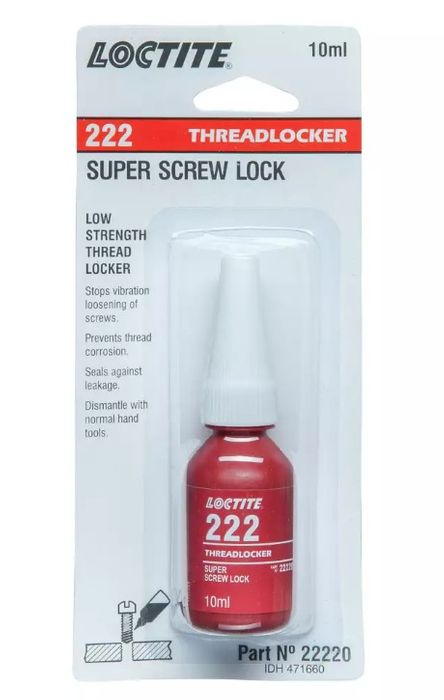

Product: LOCTITE® 222, 10 mL Bottle
Part No. / SKU / IDH: 471660
Product category: Threadlockers

If you’re working with small-diameter screws made of low-strength metals (e.g. aluminium or brass), try LOCTITE® 222. It is ideal for low-strength threadlocking of adjustment screws, countersunk head screws, and set screws.

  • Ideal for low-strength threadlocking of adjustment screws, countersunk head screws and set screws
  • Prevents fastener loosening on vibrating assemblies, e.g. pumps, gear boxes, presses
  • Ideal for small thread sizes up to 6.35 mm (1/4")
  • Can be disassembled with ordinary hand tools for easy service and maintenance

 Technical Specifications

  • Product category: Threadlockers
  • Technologies: Acrylates, anaerobic cure
  • Agency approvals / certificates / specifications, Regional approval for Europe only: NSF P1 Reg. No 123002
  • Application method: Dispense system; Manual
  • Application temperature: -55.0 °C - 150.0 °C (-65.0 °F - 300.0 °F)
  • Applications: Threadlocking
  • Breakaway torque, M10 Steel Nuts/Bolts: 6.0 N·m (50.0 in./lb.)
  • Colour: Purple
  • Cure type: Anaerobic cure
  • Fixture time: 20.0 min
  • Key characteristics: Disassembly: removable; Fluorescent; General purpose; Mix: no mix required; Strength: low Strength; Thixotropic
  • Physical form: Liquid
  • Prevail torque, M10 Steel Nuts/Bolts: 4.0 N·m (35.0 in./lb.)
  • Recommended for use with: Metal; Metal: passive metal
  • Viscosity, Speed 20 RPM, 25.0 (77.0 ): 1200.0 mPa·s (cP)

How to use

1. Surface preparation — Cleaning

Before applying the threadlocker, degrease and clean the surfaces thoroughly. LOCTITE® SF 7063/7064 is recommended by Henkel for cleaning and degreasing prior to adhesive application.

2. Surface preparation — Activation

When curing is slower because of passive metals such as stainless steel, aluminium or plated metals, or when the temperature is below 5 °C, LOCTITE® SF 7649 activator can be used to increase cure speed.

3. Application

Apply the liquid threadlocker to the area where the threads will engage.

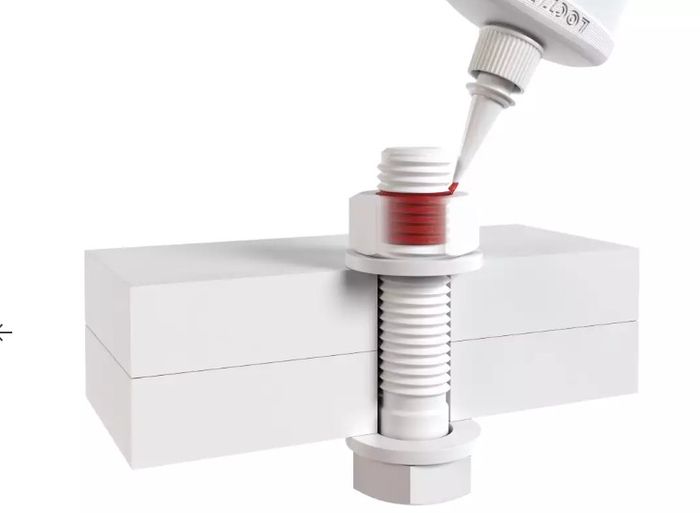

4. Through-hole applications

Insert the bolt and apply threadlocker to the exposed thread. Fit the nut and tighten to the specified torque.

5. Blind-hole applications

Apply the threadlocker into approximately the lower third of the blind hole.

6. Assembly

Assemble the components and tighten to the required torque. Where multiple bolts are being installed, bring them to the correct torque within the product's fixture period.

7. Disassembly

Disassemble using standard hand tools.

Service tip

For corroded or seized components where conventional disassembly is difficult, LOCTITE® LB 8040 Freeze and Release can be used.

Downloads and resources below

Loctite product guide

Details

  • Brand:
    Loctite
