Loctite - 567 Thread Sealant Controlled Strength

High Temp 250ml
Stock Code:
2099597_LOCTITE
$162.76 incl GST

Stock Locations

  • Ballarat:
    3 In Stock
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

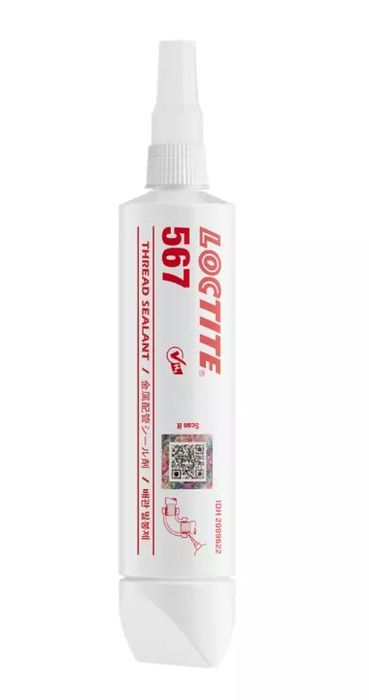

LOCTITE® 567

White, general-purpose thread sealant for an instant low-pressure seal

LOCTITE® 567 is a white, 1-part thread sealant designed for the locking and sealing of tapered metal pipe threads and fittings. As an anaerobic-curing thread sealant, it cures when confined in the absence of air between close-fitting metal surfaces and prevents loosening and leakage from shock and vibration. Its high lubricating properties prevent galling on stainless steel, aluminium and all other metal pipe threads, and allows ease of assembly. The product offers high temperature performance and tolerates minor surface contaminations from various oils, such as cutting, lubrication, anti-corrosion and protection fluids.

Meets the performance requirements of KIWA GASTEC QA AR 214 for admixtures up to and including 100% hydrogen gas – certifications are available in select countries.

  • 1-part: no mixing required
  • Doesn’t creep, shrink or block systems
  • Ideal for metal pipes and fittings
  • Provides an instant low-pressure seal
  • UL MH8007- & ULC MH27131-classified
  • KIWA GASTEC QA AR 214-certified for hydrogen gas systems

How to use

1 Preparation

2. Preparation - Activation

If cure speed is too slow due to passive metals (stainless steel, aluminum and plated metals) or low temperatures (below 5°C), use LOCTITE® SF 7649 activator. Allow to dry.

3. Application

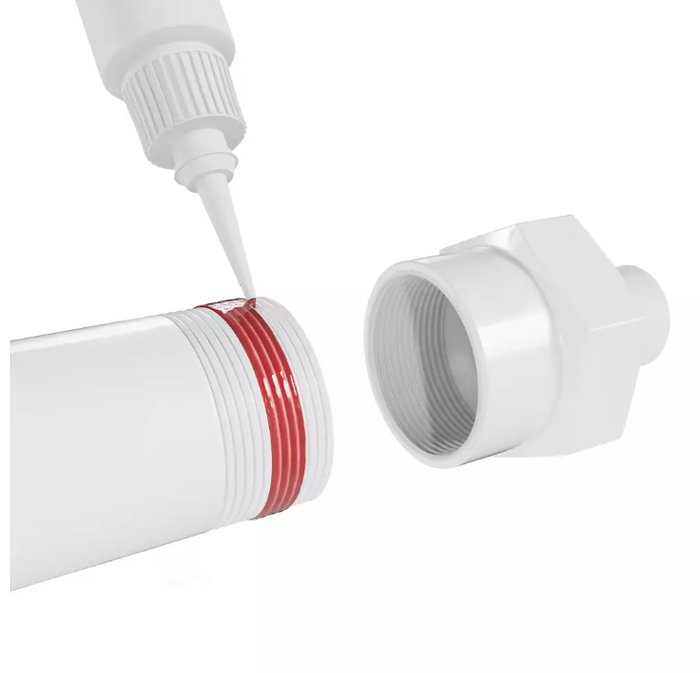

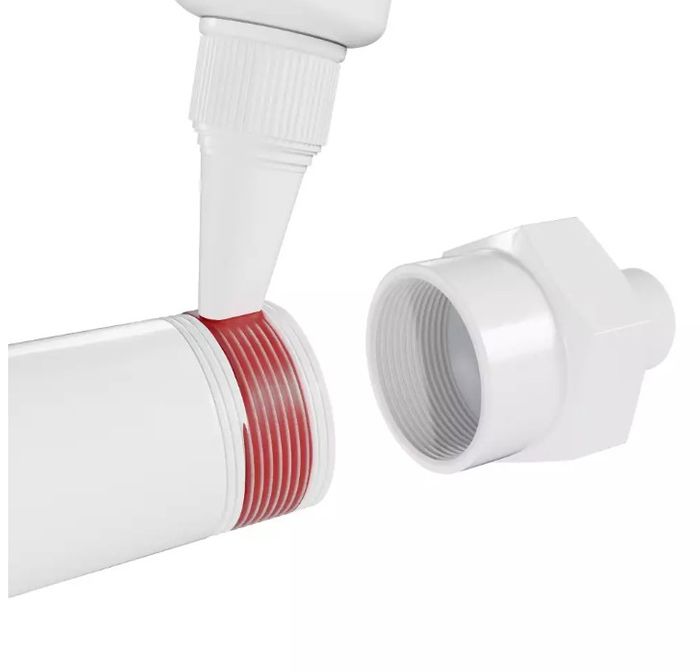

Apply a 360° bead to the leading male thread, leaving the first thread free. For bigger threads, apply both on male and female threads. For manual dispensing the use of a peristaltic handgun is recommended to ensure a consistent application volume.

4. Assembly

Assemble fittings using wrench tightening in accordance with manufacturers' recommendations.

Disassembly

Downloads and resources below


Loctite product guide

Technical data sheet

Safety data sheet

Details

  • Brand:
    Loctite
