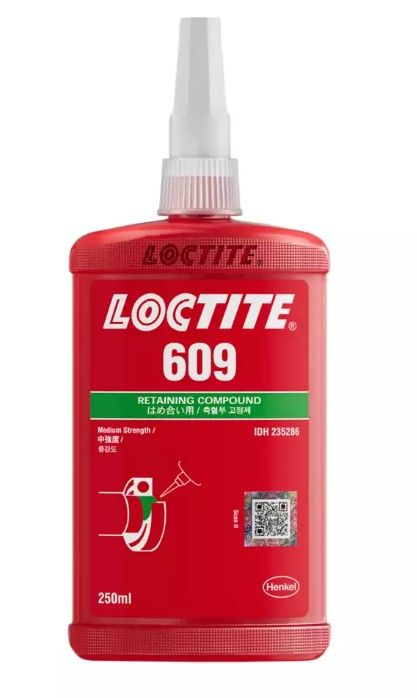

Loctite - 609 Retaining Compound Med/High Strength

250ml

Stock Code:

235286_LOCTITE

$217.91 incl GST

Stock Locations

Ballarat:

Special Order

Make an Enquiry

Add to Favourites

Description

DESCRIPTION

Loctite - 609

General purpose, low-viscosity bonding of cylindrical parts 250 ml

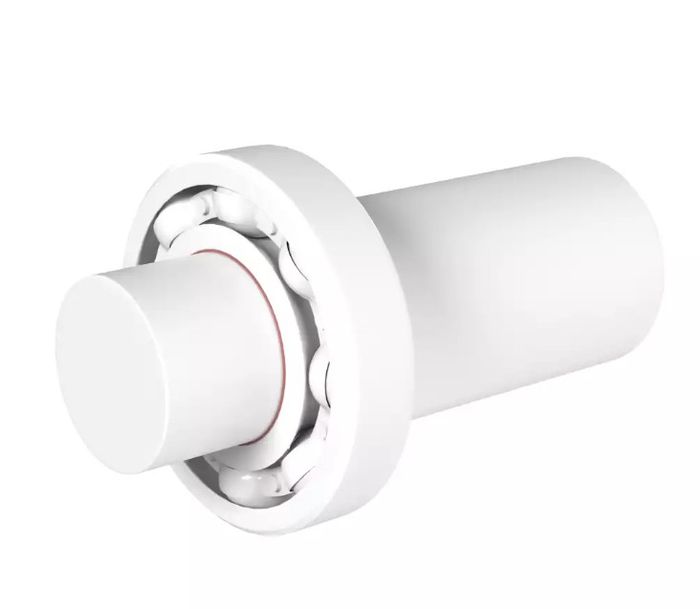

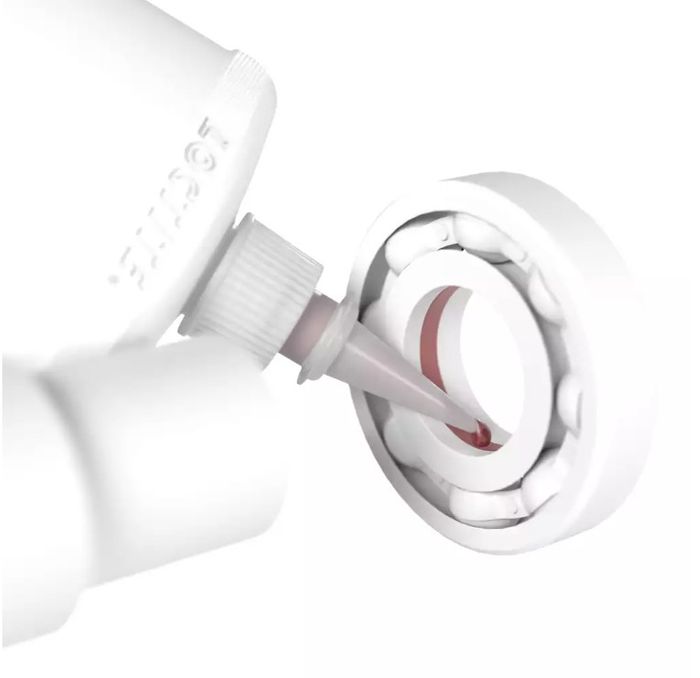

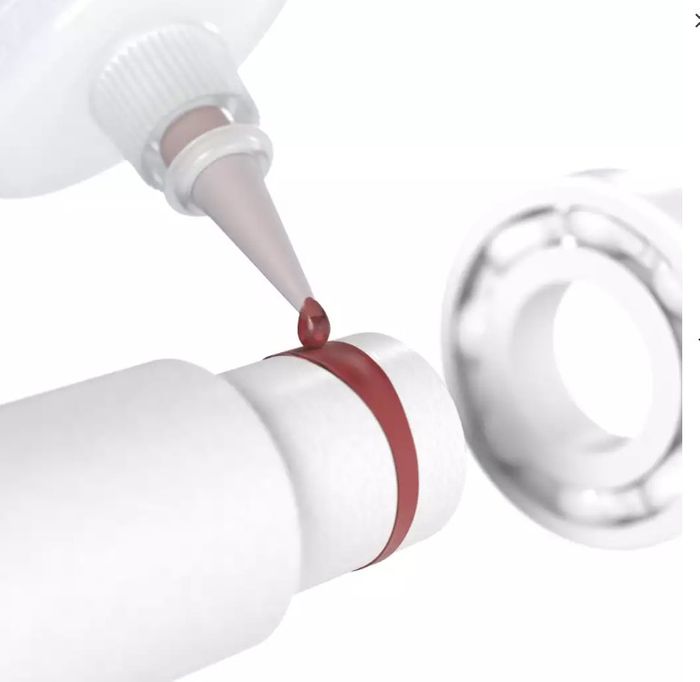

LOCTITE^® 609 is a good choice for locking bushings and sleeves in housings on shafts, augmenting press fits, or bonding any close-fitting cylindrical parts. The green, high-strength, anaerobic-curing retaining compound cures in the absence of air between close-fitting metal surfaces, providing a high-strength and corrosion-free bond. Typical applications include rotor-to-shafts in fractional and sub-fractional horsepower motors.

Low viscosity
Augments press fits
Fluorescent under UV for quality control
Operating temperature: -55°C to 150°C (-65°F to 300°F)

Technical Specification

Product category: Retaining compounds
Technologies: Acrylates, anaerobic cure
Agency approvals / certificates / specifications: ASTM D5363; MIL-R-46082B for existing designs
Application method: Dispense gun; Dispense system; Manual
Applications: For close fitting cylindrical parts; Retaining
Colour: Green
Cure type: Anaerobic cure
Fixture time: 15.0 min
Gap fill: 0.15 mm
Key characteristics: Fluorescent; Shear strength: high shear Strength; Viscosity: low viscosity
Operating temperature: -65.0 °F - 300.0 °F (-55.0 °C - 150.0 °C)
Physical form: Liquid
Recommended for use with:Metal
Shear strength, Steel: 2290.0 psi (15.8 N/mm²)
Specific gravity, @ 25.0 °C: 1.1
Viscosity: 120.0 mPa·s (cP)
