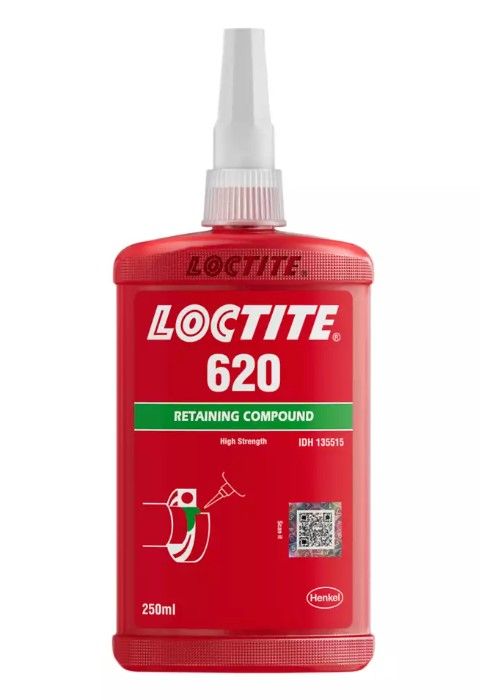

Loctite - 620 Retaining Compound High Strength

High Temp 250ml

Stock Code:

135515_LOCTITE

$248.25 incl GST

Stock Locations

Ballarat:

Special Order

Make an Enquiry

Add to Favourites

Description

DESCRIPTION

LOCTITE^® 620

High-strength, high-temperature-resistant bonding of cylindrical parts

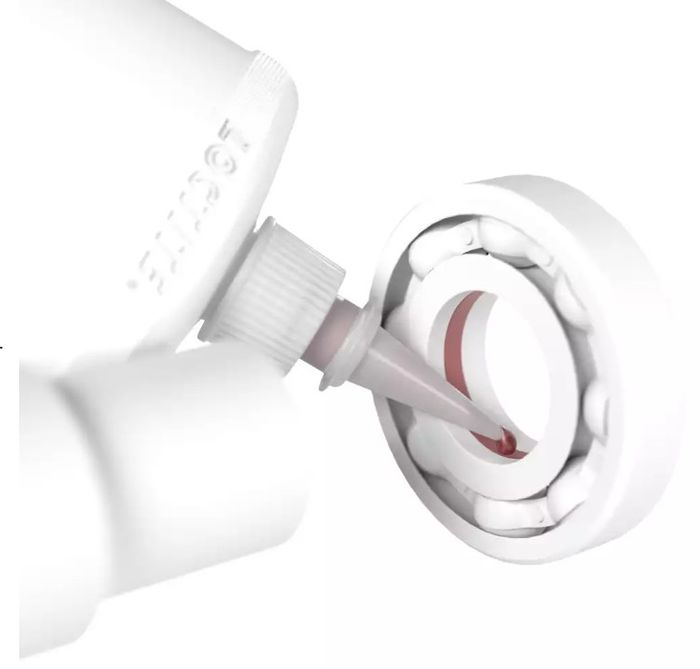

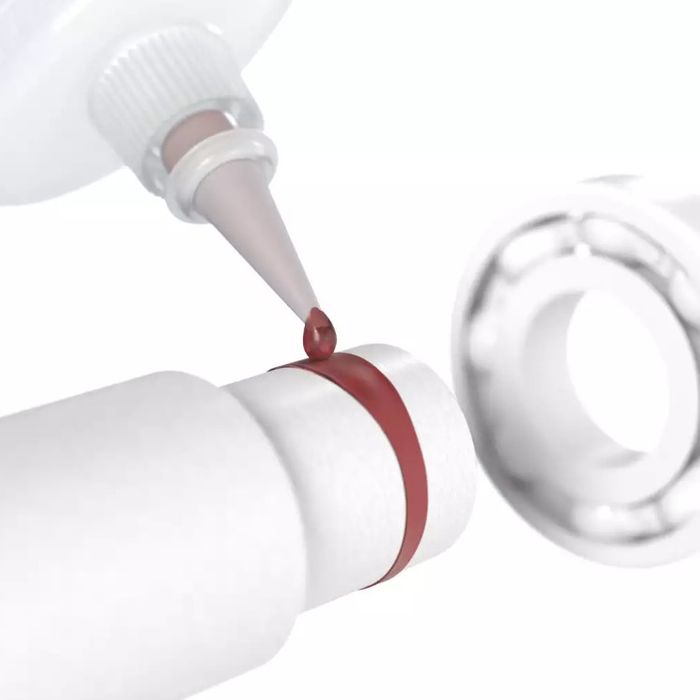

When it comes to bonding locating pins in radiator assemblies, sleeves in pump housings and bearings in auto transmissions – especially when you need high temperature resistance up to 232°C (450°F) – LOCTITE^® 620 is a good choice. This high-strength, anaerobic-curing retaining compound is designed for bonding cylindrical fitting parts to prevent loosening and leakage due to shock and vibration. It cures when confined in the absence of air between close-fitting metal surfaces, and can fill gaps from 0.15 mm–0.25 mm (0.006"–0.01").

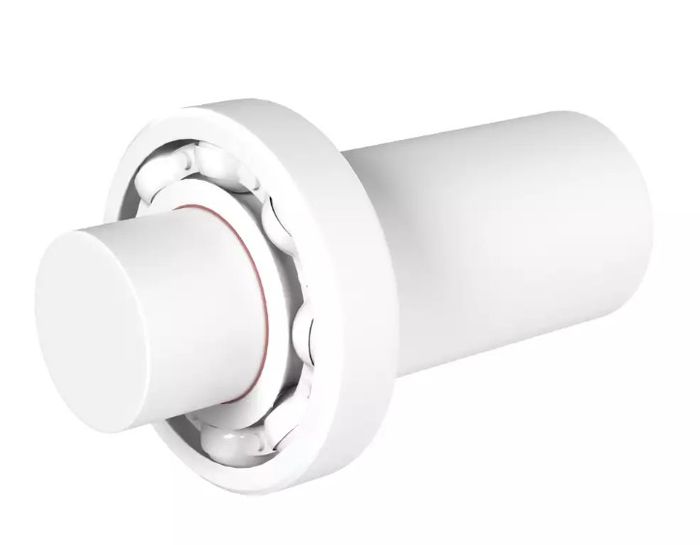

Ideal for shafts, gears, pulleys and similar cylindrical parts
Operating temperature: -55°C to 230°C (-65°F to 450°F)

Technical Specification

Product category: Retaining compounds
Technologies: Acrylates, anaerobic cure
Agency approvals / certificates / specifications: DVGW (EN 751-1): NG-5146AR0622
Application method: Dispense system; Manual
Applications: For high temperature applications; For slip fitted parts; Retaining
Colour: Green
Cure type: Anaerobic cure
Fixture time: 60.0 min
Gap fill: 0.15 mm - 0.25 mm
Key characteristics: Cure speed: slow cure; Gap filling; Strength: medium to high strength; Temperature: high temperature; Viscosity: high viscosity
Number of components: 1 part
Operating temperature: -55.0 °C - 230.0 °C (-65.0 °F - 450.0 °F)
Physical form: Liquid
Recommended for use with: Metal: steel
Shear strength, Steel: 26.0 N/mm² (3800.0 psi)
Viscosity: 8000.0 mPa·s (cP)
